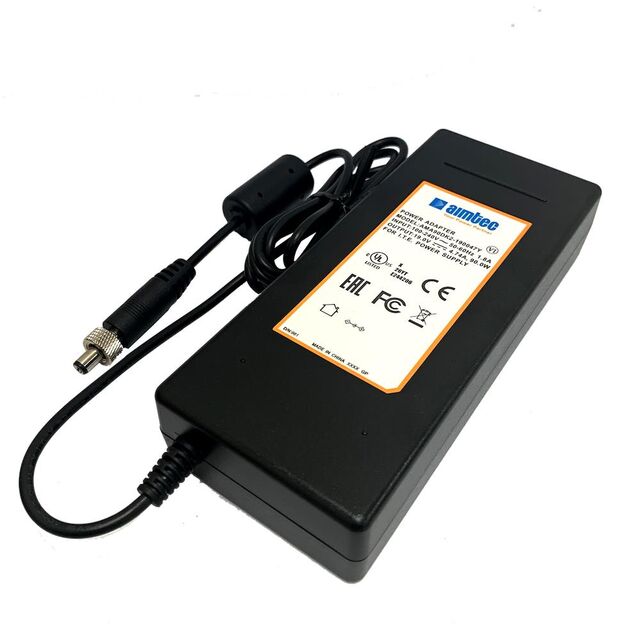

AMA90DK2-190047Y
Activeaimtec
AC/DC DESKTOP ADAPTER 19V 90W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMA90DK2-190047Y
Activeaimtec
AC/DC DESKTOP ADAPTER 19V 90W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMA90DK2-190047Y |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, CE |
| Cord Length | 60.2 in |
| Cord Length | 1.5 m |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 210 mW |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug Locking |
| Output Connector [diameter] | 2.5 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 90 W |
| Region Utilized | International |
| Size / Dimension [x] | 162 mm |
| Size / Dimension [x] | 6.38 in |
| Size / Dimension [y] | 2.73 in |
| Size / Dimension [y] | 69.3 mm |
| Size / Dimension [z] | 1.33 " |
| Size / Dimension [z] | 33.8 mm |
| Standard Number | 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 19 V |
| Weight | 493 g |
| Weight | 1.087 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 40.59 | |
| 10 | $ 35.67 | |||
| 25 | $ 33.89 | |||
| 50 | $ 32.60 | |||
| 100 | $ 31.36 | |||
| 250 | $ 29.79 | |||
Description
General part information
AMA90 Series
19V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
