9CRLA0612P0G003

Active

Sanyo Denki America Inc.

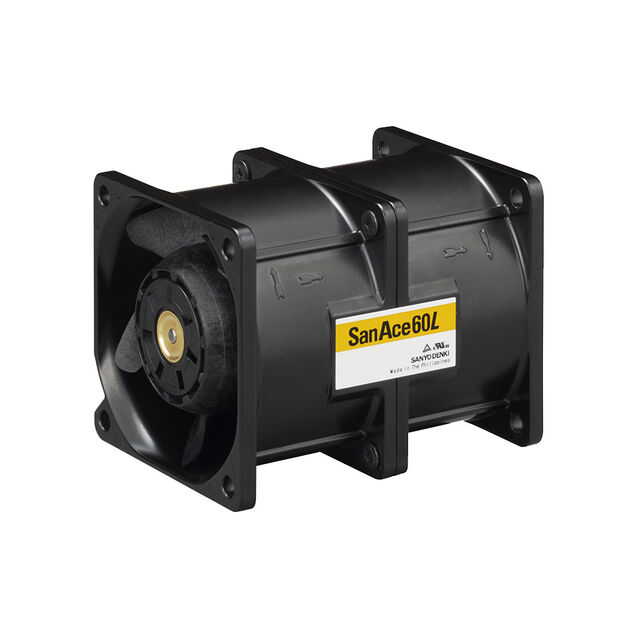

FAN AXIAL DUAL 60X76MM 12VDC

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL DUAL 60X76MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Part	Material - Blade	Width [y]	Current Rating (Amps)	Noise	RPM [custom]	RPM [custom]	Power (Watts)	Static Pressure	Static Pressure	Termination	Air Flow	Air Flow	Bearing Type	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Material - Frame	Lifetime @ Temp.	Approval Agency	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated
Sanyo Denki America Inc. 9CRLA0612P0G003	Plastic	76 mm	3 A	70 dB(A)	17800 RPM	16500 RPM	36 W	1400 Pa	5.62 in H2O	4 Wire Leads per Fan	74.1 CFM	2.07 mł/min	Ball	Tubeaxial (Dual)	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Aluminum	100000 Hrs	cURus TUV	310.26 g	0.684 lb	13.2 VDC	10.8 VDC	12 VDC
Sanyo Denki America Inc. 9CRLA0612P0G001	Plastic	76 mm	3 A	70 dB(A)	17800 RPM	16500 RPM	36 W	1400 Pa	5.62 in H2O	4 Wire Leads per Fan	74.1 CFM	2.07 mł/min	Ball	Tubeaxial (Dual)	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Aluminum	100000 Hrs	cURus TUV	310.26 g	0.684 lb	13.2 VDC	10.8 VDC	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	16	$ 104.77

General part information

Fan Tubeaxial (Dual) 12VDC Square - 60mm L x 60mm H Ball 74.1 CFM (2.07m³/min) 4 Wire Leads per Fan
