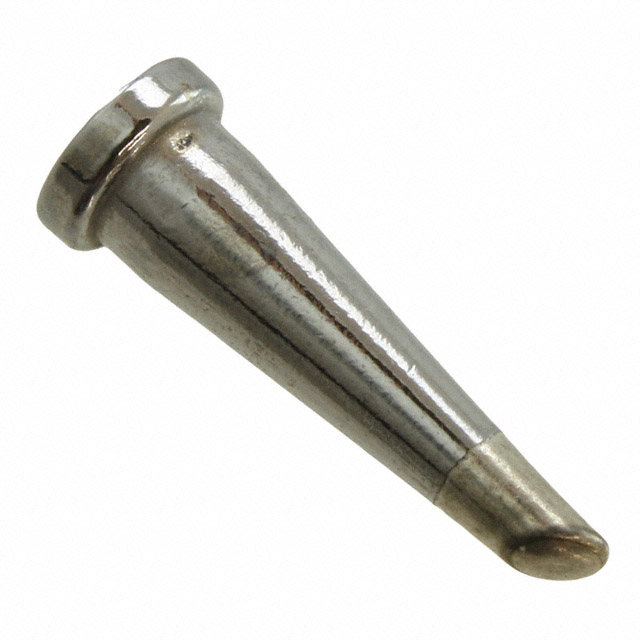

T0054441099

Active

Apex Tool Group

TIP GULL WING FOR WSP80

Search across all available documentation for this part.

Active

Apex Tool Group

TIP GULL WING FOR WSP80

Technical Specifications

Parameters and characteristics for this part

Specification	T0054441099

For Use With/Related Products	WP80, WSP80
Height [z]	0.126 "
Height [z]	3.2 mm
Length	17.78 mm
Length	0.7 in
Tip Shape	Bevel 45°
Tip Type	Soldering
Width [y]	2.4 mm
Width [y]	0.094 in

Part	Tip Shape	Tip Type	For Use With/Related Products	Length [x]	Length [x]	Width [x]	Width [x]	Height [z]	Height [z]	Width [y]	Width [y]	Length	Length
Apex Tool Group T0054441373
Apex Tool Group T0054441199N	Chisel	Soldering	WP80 WSP80	0.669 in	17 mm	0.126 in	3.2 mm
Apex Tool Group T0054441099	Bevel 45°	Soldering	WP80 WSP80					0.126 "	3.2 mm	2.4 mm	0.094 in	17.78 mm	0.7 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.90

General part information

TIP GULL WING FOR WSP80

Technical documentation and resources
