PX0732/P

Active

BULGIN LIMITED

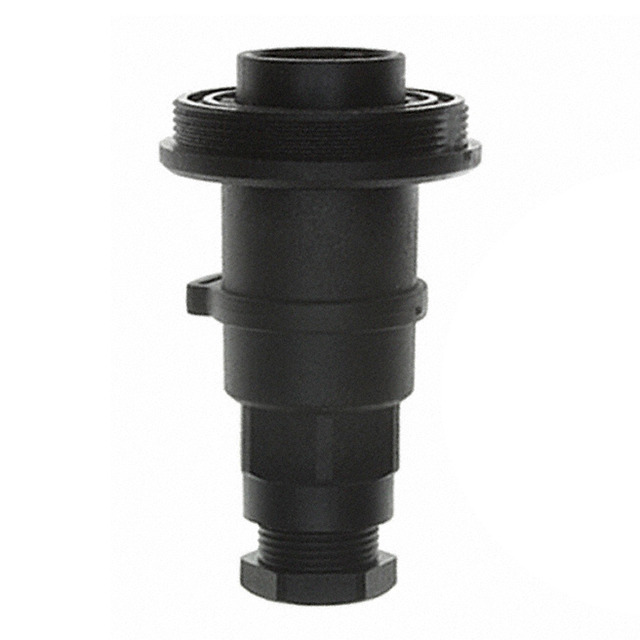

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, CABLE MOUNT PLUG, 3 CONTACTS, SCREW PIN, THREADED

Search across all available documentation for this part.

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, CABLE MOUNT PLUG, 3 CONTACTS, SCREW PIN, THREADED

Technical Specifications

Parameters and characteristics for this part

Specification	PX0732/P

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	10 A
Features	Backshell
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 VAC/DC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Shielding	Insert Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)	Shell Material	Orientation	Voltage Rating	Ingress Protection	Contact Finish - Mating	Termination	Mounting Type	Contact Material	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Features	Material Flammability Rating	Primary Material	Color	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
BULGIN LIMITED PX0732/S/07	-20 C	70 °C	Glass Filled Nylon Polyamide (PA)	Unshielded	Nylon Polyamide (PA)	3	1	2	10 A	Glass Filled Nylon Polyamide (PA)	Keyed	277 VAC/DC	IP68 IP69K	Nickel	Screw	Free Hanging (In-Line)	Brass	0.276 in 0.354 in	7 mm 9 mm	Receptacle Female Sockets	Backshell	UL94 HB	Plastic	Black
BULGIN LIMITED PX0732/P	-20 C	70 °C	Glass Filled Nylon Polyamide (PA)	Unshielded	Nylon Polyamide (PA)	3	1	2	10 A	Glass Filled Nylon Polyamide (PA)	Keyed	277 VAC/DC	IP68 IP69K	Nickel	Screw	Free Hanging (In-Line)	Brass			Male Pins Receptacle	Backshell	UL94 HB	Plastic	Black	8 mm	6 mm	0.315 in	0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (2 Power + PE) Position Circular Connector Receptacle, Male Pins Screw
