1059540-1

Obsolete

TE Connectivity Raychem Cable Protection

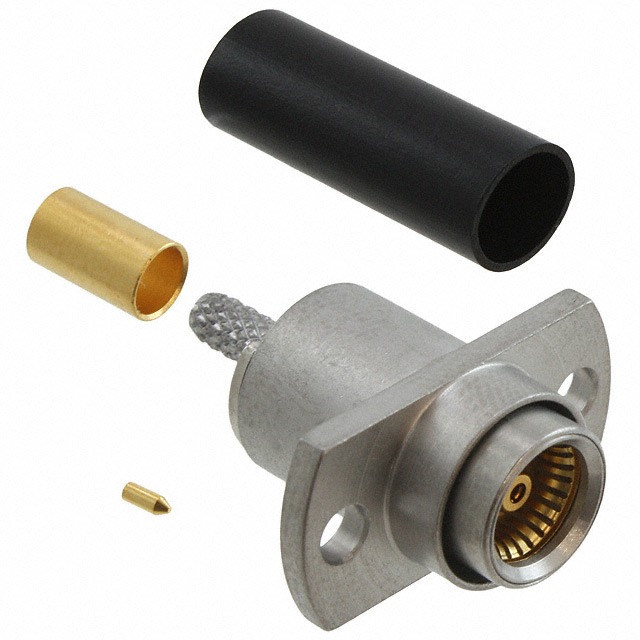

CONN MINI OSP JACK STR 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

1059540-1

Obsolete

TE Connectivity Raychem Cable Protection

CONN MINI OSP JACK STR 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1059540-1

Body Material	Stainless Steel
Cable Group	RG-55
Cable Group	223, 142, 400
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Mini, OSP
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Heat Shrink, 2 pcs - 1 Connector
Mating Cycles	5000
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

1059 Series

Part	Mating Cycles	Body Material	Voltage Rating	Dielectric Material	Includes	Center Contact Plating	Frequency - Max [Max]	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Connector Type	Housing Color	Connector Style	Fastening Type	Contact Termination	Impedance	Mounting Type	Center Contact Material	Center Gender	Adapter Type	Convert To (Adapter End)	Convert From (Adapter End)	Adapter Series	Style	Conversion Type	Convert To (Adapter End)	Mounting Feature	Cable Group	Body Finish	Cable Group
TE Connectivity Raychem Cable Protection 1059632-1	5000	Stainless Steel	375 V	Polytetrafluoroethylene (PTFE)	1 Connector 1 Gasket	Gold	18 GHz	1	125 °C	-65 ░C	Solder	Male Pin Receptacle	Silver	OSP	Snap-On	Solder	50 Ohms	Panel Mount Threaded	Beryllium Copper
TE Connectivity Raychem Cable Protection 1059724-1		Stainless Steel		Polytetrafluoroethylene (PTFE)		Gold	18 GHz		165 °C	-65 ░C					Snap-On Threaded		50 Ohms	Panel Mount Snap-In	Beryllium Copper	Female to Female	Jack to Jack	Female Socket OSP Jack	Female Socket SMA Jack	OSM to OSP	Straight	Between Series
TE Connectivity Raychem Cable Protection 1059713-1		Stainless Steel				Gold	18 GHz								Snap-On Threaded			Free Hanging (In-Line)	Brass	Male to Non-Gendered		Non-Gendered	OSP Plug Male Pin	OSP to 7mm	Straight	Between Series	7 mm
TE Connectivity Raychem Cable Protection 1059506-1	5000	Stainless Steel		Polytetrafluoroethylene (PTFE)	1 Connector 1 Lockwasher 1 Nut	Gold	22 GHz	1	125 °C	-65 ░C	Solder	Female Socket Jack	Silver	Mini OSP	Snap-On		50 Ohms		Beryllium Copper									Bulkhead - Front Side Nut	RG-405 (.085" Semi Rigid)
TE Connectivity Raychem Cable Protection 1059412-1	5000	Stainless Steel		Polytetrafluoroethylene (PTFE)	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Gold	22 GHz	1	125 °C	-65 ░C	Solder	Female Socket Jack	Gold	Mini OSP	Snap-On		50 Ohms		Beryllium Copper									Bulkhead - Front Side Nut	RG-405 (.085" Semi Rigid)	Gold
TE Connectivity Raychem Cable Protection 1059378-1	5000	Stainless Steel	335 V	Polytetrafluoroethylene (PTFE)	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Gold	18 GHz	1	125 °C	-65 ░C	Solder	Male Pin Plug	Gold	Mini OSP	Snap-On		50 Ohms		Beryllium Copper									Bulkhead - Front Side Nut	RG-405 (.085" Semi Rigid)	Gold
TE Connectivity Raychem Cable Protection 1059928-1		Stainless Steel		Polytetrafluoroethylene (PTFE)		Gold	18 GHz		125 °C	-65 ░C					Snap-On Threaded		50 Ohms	Free Hanging (In-Line)	Beryllium Copper	Female to Female	Jack to Jack	Female Socket OSSP Jack	Female Socket SMA Jack	OSM to OSSP	Straight	Between Series
TE Connectivity Raychem Cable Protection 1059733-1		Stainless Steel		Polytetrafluoroethylene (PTFE)	1 Connector 1 Lockwasher 1 Nut	Gold									Snap-On Threaded				Beryllium Copper	Female to Female	Jack to Jack	Female Socket OSP Jack	Female Socket SMA Jack	SMA to OSP	Straight	Between Series		Bulkhead
TE Connectivity Raychem Cable Protection 1059540-1	5000	Stainless Steel	335 V	Polytetrafluoroethylene (PTFE)	1 Heat Shrink 2 pcs - 1 Connector	Gold	18 GHz	1	125 °C	-65 ░C	Crimp	Female Socket Jack	Silver	Mini OSP	Snap-On	Solder	50 Ohms		Beryllium Copper									Flange	RG-55		142 223 400
TE Connectivity Raychem Cable Protection 1059499-1	5000	Stainless Steel	335 V	Polytetrafluoroethylene (PTFE)	1 Connector 1 Lockwasher 1 Nut	Gold	22 GHz	1	125 °C	-65 ░C	Solder	Female Socket Jack	Silver	OSP	Snap-On	Solder	50 Ohms		Beryllium Copper									Bulkhead - Front Side Nut	RG-405 (.085" Semi Rigid)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1059 Series

OSP, Mini Connector Jack, Female Socket 50 Ohms Panel Mount Solder
