1861219

Active

Phoenix Contact

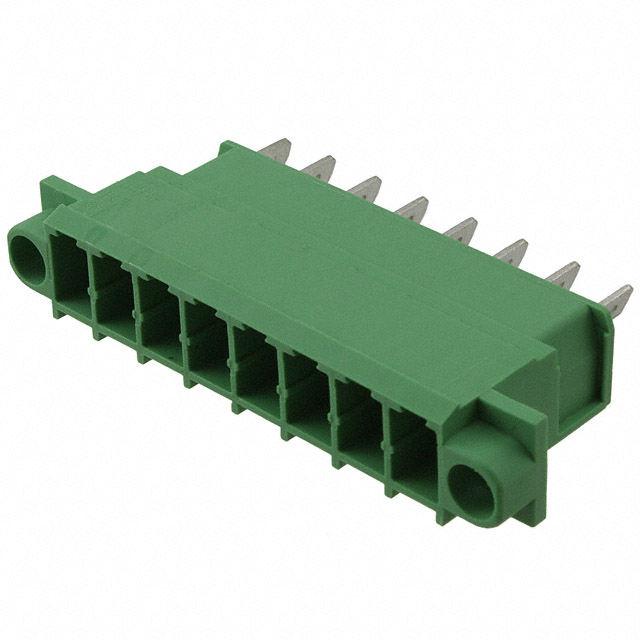

PLUGGABLE TERMINAL BLOCKS 8 POS 7.62MM PITCH FEED THROUGH HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 8 POS 7.62MM PITCH FEED THROUGH HEADER

Technical Specifications

Parameters and characteristics for this part

Pluggable Terminal Blocks 2 Pos 7.62mm pitch Feed Through Header

Part	Width [x]	Width [x]	Front Panel Wire Connection	Positions Per Level	Panel Thickness [Max]	Panel Thickness	Panel Thickness [Min]	Number of Levels	Panel Mount Type	Pitch [x]	Pitch [x]	Current - UL	Color	Features	Rear Panel Wire Connection	Wire Gauge [Min]	Wire Gauge [Max]	Voltage - UL
Phoenix Contact 1716616	49.86 mm	1.963 in	Header Male Pins	2	0.118 in	1 mm 3 mm	0.039 in	1	2 Piece Snap Lock - Front Flange	0.3 in	7.62 mm	41 A	Green	Shield Connection Front Side Threaded Mating Lock	Bolt/Screw Clamp Wire Entry Parallel to Panel	8 AWG	24 AWG
Phoenix Contact 1861219	76.18 mm	2.999 in	Header Male Pins	8				1	Screw Mount - Front Flange	0.3 in	7.62 mm	20 A	Green	Threaded Mating Lock				300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 2 Pos 7.62mm pitch Feed Through Header
