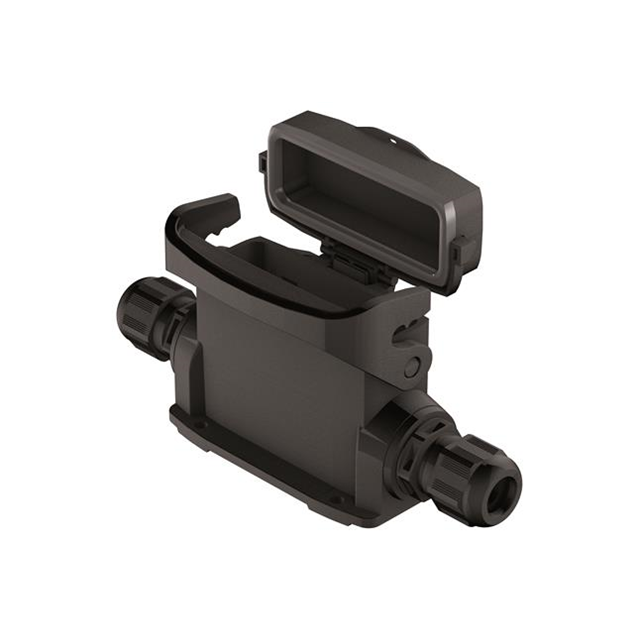

19463160293

LTB

HARTING Technology Group

HAN-ECO 16A SURFACE MOUNT HOUSIN

Search across all available documentation for this part.

LTB

HARTING Technology Group

HAN-ECO 16A SURFACE MOUNT HOUSIN

Technical Specifications

Parameters and characteristics for this part

Specification	19463160293

Connector Type	Base - Box Mount
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 A
Style	Side Entry
Thread Size	M25

Part	Thread Size	Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Connector Type	Housing Material	Style	Lock Location	Features
HARTING Technology Group 19463160446	M25	16 A	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Black	Hood	Polyamide (PA) Nylon Glass Filled	Top Entry	Locking Clip (1) on Base Bottom
HARTING Technology Group 19463160252	M20	16 A	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Black	Base - Box Mount	Polyamide (PA) Nylon Glass Filled	Side Entry	Locking Clip (1) on Base Bottom	Cover
HARTING Technology Group 19463160293	M25	16 A	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Black	Base - Box Mount	Polyamide (PA) Nylon Glass Filled	Side Entry	Locking Clip (1) on Base Bottom
HARTING Technology Group 19463160546	M25	16 A	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Black	Hood	Polyamide (PA) Nylon Glass Filled	Side Entry	Locking Clip (1) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 120.52

General part information

Base - Box Mount Connector Side Entry M25 16A IP65 - Dust Tight, Water Resistant
