R185260000

Active

Radiall USA, Inc.

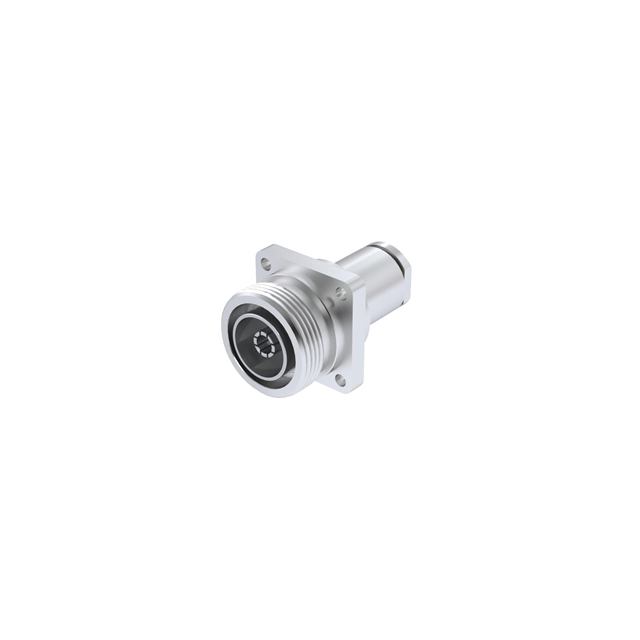

7-16 / STRAIGHT SQUARE FLANGE JA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

7-16 / STRAIGHT SQUARE FLANGE JA

Technical Specifications

Parameters and characteristics for this part

Specification	R185260000

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-213, 214, 225, 393
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	7/16 DIN
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	1400 V

Part	Body Finish	Frequency - Max [Max]	Body Material	Connector Style	Center Contact Material	Cable Group	Connector Type	Voltage Rating	Contact Termination	Mounting Feature	Center Contact Plating	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Impedance	Mating Cycles	Dielectric Material	Ingress Protection	Number of Ports
Radiall USA, Inc. R185260000W	White Bronze	7.5 GHz	Brass	7/16 DIN	Beryllium Copper	214 225 393 RG-213	Female Socket Jack	1400 V	Solder	Flange	Silver	Silver	155 °C	-55 °C	Clamp	50 Ohms	500	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	1
Radiall USA, Inc. R185260000	White Bronze	7.5 GHz	Brass	7/16 DIN	Beryllium Copper	214 225 393 RG-213	Female Socket Jack	1400 V	Solder	Flange	Silver	Silver	155 °C	-55 °C	Clamp	50 Ohms	500	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	64	$ 61.39

General part information

7/16 DIN Connector Jack, Female Socket 50 Ohms Panel Mount Solder
