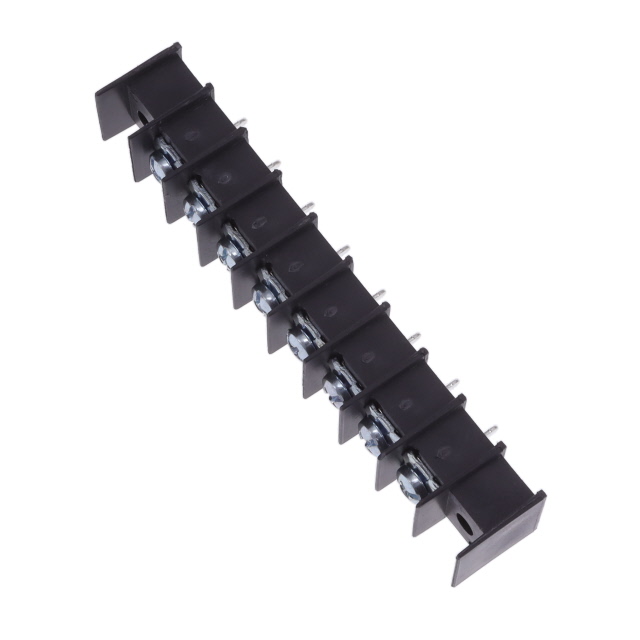

430111-08-0

Active

Curtis Industries

CONN BARRIER STRIP 8CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Blocks Catalog

430111-08-0

Active

Curtis Industries

CONN BARRIER STRIP 8CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet Terminal Blocks Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	430111-08-0

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits [custom]	8
Number of Rows	1
Number of Wire Entries	8
Operating Temperature	105 C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

430111 Series

Part	Bottom Termination	Top Termination	Features	Terminal Block Type	Number of Rows	Operating Temperature	Material Flammability Rating	Mounting Type	Pitch [x]	Pitch [x]	Number of Circuits	Barrier Type	Material - Insulation	Number of Wire Entries	Voltage Rating	Current Rating (Amps)	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries [custom]	Number of Circuits [custom]
Curtis Industries 430111-06-0	PC Pin	Screws	Flange	Barrier Block	1	105 C	UL94 V-0	Chassis Panel Through Hole	11.12 mm	0.438 in	6	2 Wall (Dual)	Polypropylene (PP)	6	600 V	20 A	12 AWG	22 AWG
Curtis Industries 430111-01-0	PC Pin	Screws	Flange	Barrier Block	1	105 C	UL94 V-0	Chassis Panel Through Hole			1	2 Wall (Dual)	Polypropylene (PP)		600 V	20 A	12 AWG	22 AWG	1
Curtis Industries 430111-10-0	PC Pin	Screws	Flange	Barrier Block	1	105 C	UL94 V-0	Chassis Panel Through Hole	11.12 mm	0.438 in	10	2 Wall (Dual)	Polypropylene (PP)	10	600 V	20 A	12 AWG	22 AWG
Curtis Industries 430111-18-0	PC Pin	Screws	Flange	Barrier Block	1	105 C	UL94 V-0	Chassis Panel Through Hole	11.12 mm	0.438 in	18	2 Wall (Dual)	Polypropylene (PP)	18	600 V	20 A	12 AWG	22 AWG
Curtis Industries 430111-07-0	PC Pin	Screws	Flange	Barrier Block	1	105 C	UL94 V-0	Chassis Panel Through Hole	11.12 mm	0.438 in	7	2 Wall (Dual)	Polypropylene (PP)	7	600 V	20 A	12 AWG	22 AWG
Curtis Industries 430111-12-0	PC Pin	Screws	Flange	Barrier Block	1	105 C	UL94 V-0	Chassis Panel Through Hole	11.12 mm	0.438 in	12	2 Wall (Dual)	Polypropylene (PP)	12	600 V	20 A	12 AWG	22 AWG
Curtis Industries 430111-08-0	PC Pin	Screws	Flange	Barrier Block	1	105 C	UL94 V-0	Chassis Panel Through Hole	11.12 mm	0.438 in		2 Wall (Dual)	Polypropylene (PP)	8	600 V	20 A	12 AWG	22 AWG		8
Curtis Industries 430111-15-0	PC Pin	Screws	Flange	Barrier Block	1	105 C	UL94 V-0	Chassis Panel Through Hole	11.12 mm	0.438 in	15	2 Wall (Dual)	Polypropylene (PP)	15	600 V	20 A	12 AWG	22 AWG
Curtis Industries 430111-23-0	PC Pin	Screws	Flange	Barrier Block	1	105 C	UL94 V-0	Chassis Panel Through Hole	11.12 mm	0.438 in	23	2 Wall (Dual)	Polypropylene (PP)		600 V	20 A	12 AWG	22 AWG	23

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.09
		10	$ 5.59
		25	$ 5.32
		50	$ 4.83
		100	$ 4.64
		250	$ 4.09
		500	$ 3.82
		1000	$ 3.55

Description

General part information

430111 Series

8 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
