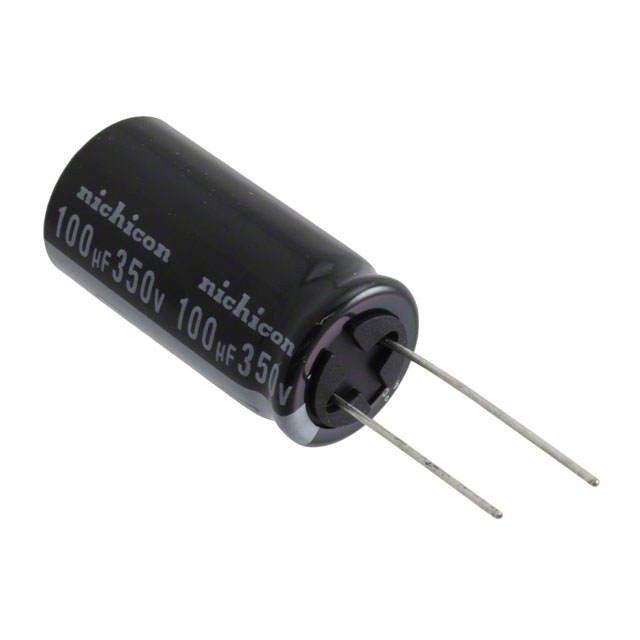

UVY2V101MHD

Active

NICHICON

CAP ALUM 100UF 20% 350V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miniature Type Taping Spec

UVY2V101MHD

Active

NICHICON

CAP ALUM 100UF 20% 350V RADIAL

Deep-Dive with AI

DocumentsDatasheet Miniature Type Taping Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UVY2V101MHD

Applications	General Purpose
Capacitance	100 µF
Height - Seated (Max) [Max] [z]	37.5 mm
Height - Seated (Max) [Max] [z]	1.476 in
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	425.5 mA
Ripple Current @ Low Frequency	370 mA
Size / Dimension [diameter]	0.709 "
Size / Dimension [diameter]	18 mm
Tolerance	20 %
Voltage - Rated	350 V

UVY2V Series

Part	Lifetime @ Temp.	Applications	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Mounting Type	Lead Spacing	Lead Spacing	Package / Case	Ripple Current @ High Frequency	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Height - Seated (Max)	Height - Seated (Max) [Max]
NICHICON UVY2V330MHD1TO	2000 Hrs	General Purpose	33 ÁF	0.492 in	12.5 mm	Polar	Through Hole	5 mm	0.197 in	Radial Can	195.5 mA	20 %	-40 °C	105 ░C	170 mA	1.063 in	27 mm	350 V
NICHICON UVY2V3R3MPD1TD	1000 Hrs	General Purpose	3.3 µF	0.315 "	8 mm	Polar	Through Hole	3.5 mm	0.138 in	Radial Can	34.5 mA	20 %	-40 °C	105 ░C	30 mA	0.512 "	13 mm	350 V
NICHICON UVY2V330MHD	2000 Hrs	General Purpose	33 ÁF	0.492 in	12.5 mm	Polar	Through Hole	5 mm	0.197 in	Radial Can	195.5 mA	20 %	-40 °C	105 ░C	170 mA	1.063 in	27 mm	350 V
NICHICON UVY2V4R7MPD1TA	1000 Hrs	General Purpose	4.7 µF	0.315 "	8 mm	Polar	Through Hole	3.5 mm	0.138 in	Radial Can	44.85 mA	20 %	-40 °C	105 ░C	39 mA	0.512 "	13 mm	350 V
NICHICON UVY2V100MPD	2000 Hrs	General Purpose	10 µF	0.394 in	10 mm	Polar	Through Hole	5 mm	0.197 in	Radial Can	73.6 mA	20 %	-40 °C	105 ░C	64 mA			350 V	14 mm	0.551 "
NICHICON UVY2V3R3MPD	1000 Hrs	General Purpose	3.3 µF	0.315 "	8 mm	Polar	Through Hole	3.5 mm	0.138 in	Radial Can	34.5 mA	20 %	-40 °C	105 ░C	30 mA	0.512 "	13 mm	350 V
NICHICON UVY2V470MHD	2000 Hrs	General Purpose	47 µF	0.63 in	16 mm	Polar	Through Hole	7.5 mm	0.295 in	Radial Can	241.5 mA	20 %	-40 °C	105 ░C	210 mA	1.063 in	27 mm	350 V
NICHICON UVY2V101MHD	2000 Hrs	General Purpose	100 µF	0.709 "	18 mm	Polar	Through Hole	7.5 mm	0.295 in	Radial Can	425.5 mA	20 %	-40 °C	105 ░C	370 mA	1.476 in	37.5 mm	350 V
NICHICON UVY2V470MHD1TN	2000 Hrs	General Purpose	47 µF	0.63 in	16 mm	Polar	Through Hole	7.5 mm	0.295 in	Radial Can	241.5 mA	20 %	-40 °C	105 ░C	210 mA	1.063 in	27 mm	350 V
NICHICON UVY2V331MRD	2000 Hrs	General Purpose	330 µF	0.984 "	25 mm	Polar	Through Hole	12.5 mm	0.492 in	Radial Can	816.5 mA	20 %	-40 °C	105 ░C	710 mA	2.047 in	52 mm	350 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 1.82
Newark	Each	100	$ 2.02
		500	$ 1.84
		1000	$ 1.63
		2500	$ 1.51

Description

General part information

UVY2V Series

100 µF 350 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
