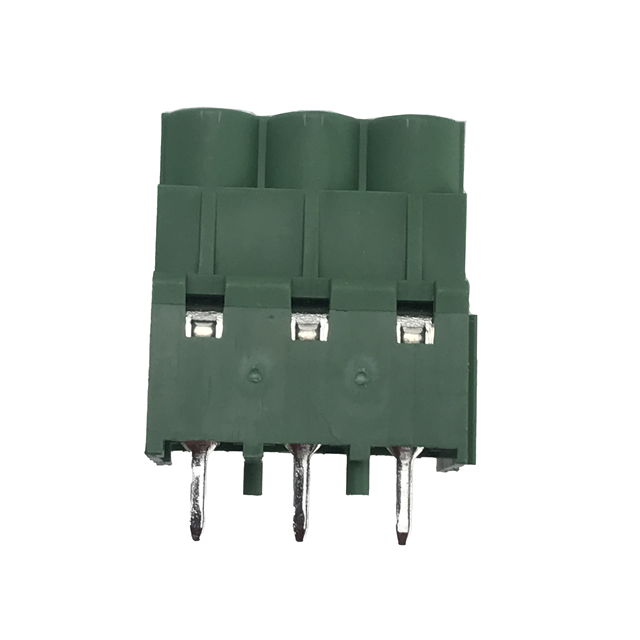

MB910-635M03

Active

Deca

PCB TERMINAL BLOCK WITH STANDOFF

Search across all available documentation for this part.

Active

Deca

PCB TERMINAL BLOCK WITH STANDOFF

Technical Specifications

Parameters and characteristics for this part

Specification	MB910-635M03

Clamp Material - Plating	Steel, Nickel Plated
Color	Green
Contact Material - Plating [custom]	Brass - Tin Plated
Current	30 A
Features	Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.25 in
Pitch [x]	6.35 mm
Positions Per Level	3
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M3
Torque - Screw	1 Nm
Torque - Screw	8.9 Lb-In
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	10 AWG
Wire Termination	Screw - Rising Cage Clamp

Part	Positions Per Level	Contact Material - Plating [custom]	Current	Mounting Type	Mating Orientation	Torque - Screw	Torque - Screw	Screw Thread	Wire Gauge [Max]	Wire Gauge [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Pitch [x]	Pitch [x]	Clamp Material - Plating	Wire Termination	Voltage	Screw Material - Plating	Color	Number of Levels
Deca MB910-635M03	3	Brass - Tin Plated	30 A	Through Hole	Horizontal with Board	1 Nm	8.9 Lb-In	M3	24 AWG	10 AWG	-40 °C	105 ░C	Interlocking (Side)	0.25 in	6.35 mm	Nickel Plated Steel	Screw - Rising Cage Clamp	300 V	Steel Zinc Plated	Green	1
Deca MB910-952M03	3	Brass - Tin Plated	30 A	Through Hole	Horizontal with Board	1 Nm	8.9 Lb-In	M3	24 AWG	10 AWG	-40 °C	105 ░C	Interlocking (Side)	0.375 in	9.53 mm	Nickel Plated Steel	Screw - Rising Cage Clamp	600 V	Nickel Plated Steel	Green	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block Horizontal with Board 0.250" (6.35mm) Through Hole
