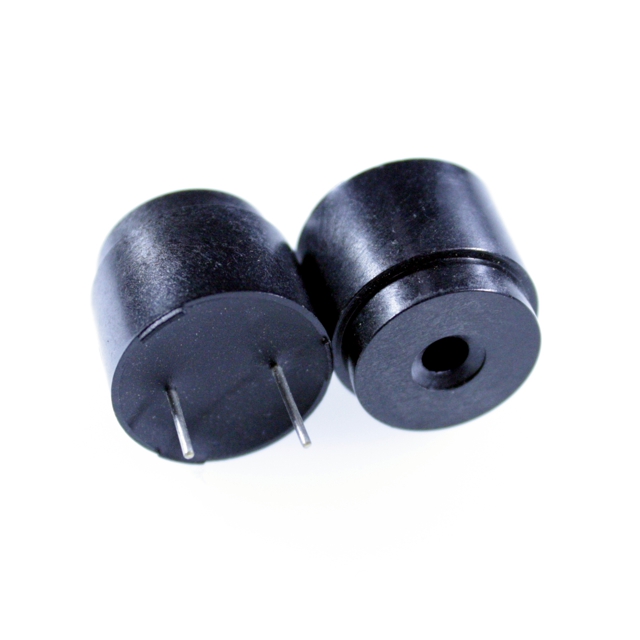

BMT1606XH14
ActiveBeStar Technologies, Inc.
BUZZER MAGNETIC 6V 16MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BMT1606XH14
ActiveBeStar Technologies, Inc.
BUZZER MAGNETIC 6V 16MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BMT1606XH14 |
|---|---|
| Current - Supply | 30 mA |
| Frequency | 2.3 kHz |
| Height - Seated (Max) | 14 mm |
| Height - Seated (Max) [Max] | 0.551 " |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Port Location | Top |
| Size / Dimension [diameter] | 0.63 in |
| Size / Dimension [diameter] | 16 mm |
| Sound Pressure Level (SPL) | 85 dB |
| Technology | Magnetic |
| Termination | PC Pins |
| Voltage - Rated | 6 VDC |
| Voltage Range [Max] | 8 V |
| Voltage Range [Min] | 4 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 5.20 | |
| 25 | $ 3.47 | |||
| 50 | $ 2.60 | |||
| 100 | $ 1.73 | |||
Description
General part information
BMT1606 Series
Buzzers Magnetic 6 V 30mA 2.3kHz 85dB @ 6V, 10cm Through Hole PC Pins
