C6PC,AL

Active

Serpac

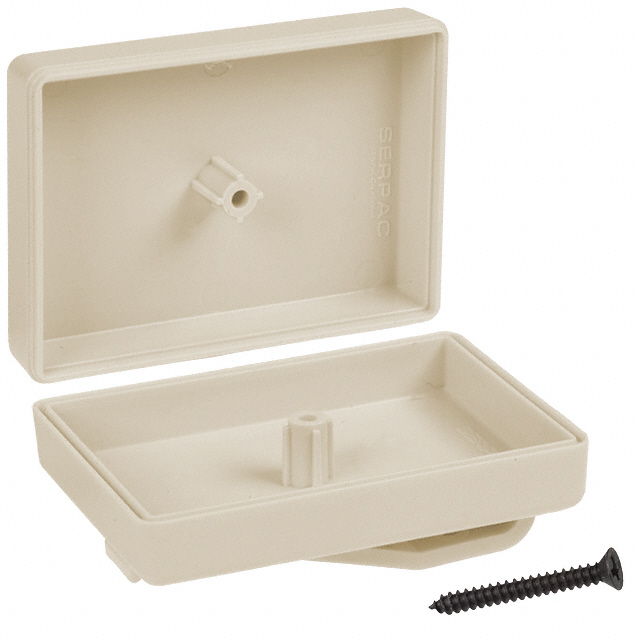

BOX ABS ALMOND 2.26"L X 1.61"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 2.26"L X 1.61"W

Technical Specifications

Parameters and characteristics for this part

Specification	C6PC,AL

Area (L x W) [custom]	3.64 in²
Area (L x W) [custom]	23.5 cm²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	Pocket Clip
Height [z]	19.05 mm
Height [z]	0.75 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	57.4 mm
Size / Dimension [x]	2.26 "
Size / Dimension [y]	40.89 mm
Size / Dimension [y]	1.61 "
Thickness	1.52 mm
Thickness	0.06 in
Weight	0.038 lb
Weight	17.24 g

Part	Thickness	Thickness	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Height [z]	Height [z]	Color	Area (L x W) [custom]	Area (L x W) [custom]	Material Flammability Rating	Material	Design	Container Type	Ratings
Serpac C6PC,BK	1.52 mm	0.06 in	Pocket Clip	40.89 mm	57.4 mm	1.61 "	2.26 "	0.038 lb	17.24 g	19.05 mm	0.75 in	Black	23.5 cm²	3.64 in²	UL94 HB	Plastic ABS	Hand Held Split Sides	Box	IP40
Serpac C6PC,GY	1.52 mm	0.06 in	Pocket Clip	40.89 mm	57.4 mm	1.61 "	2.26 "	0.038 lb	17.24 g	19.05 mm	0.75 in	Gray	23.5 cm²	3.64 in²	UL94 HB	Plastic ABS	Hand Held Split Sides	Box	IP40
Serpac C6PC,AL	1.52 mm	0.06 in	Pocket Clip	40.89 mm	57.4 mm	1.61 "	2.26 "	0.038 lb	17.24 g	19.05 mm	0.75 in	Almond	23.5 cm²	3.64 in²	UL94 HB	Plastic ABS	Hand Held Split Sides	Box	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.82

General part information

Box Plastic, ABS Almond Hand Held, Split Sides 2.260" L x 1.610" W (57.40mm x 40.89mm) X 0.750" (19.05mm)
