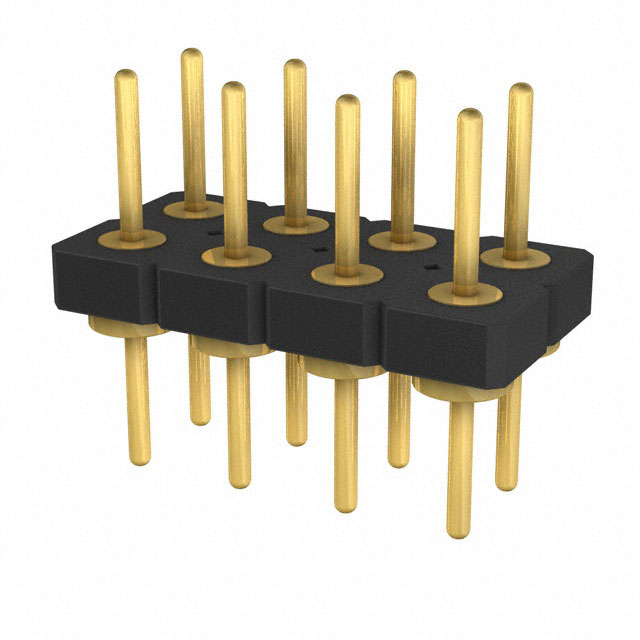

BDL-104-G-F

Active

Samtec Inc.

CONN HEADER VERT 8POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 8POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BDL-104-G-F

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Length - Mating [x]	0.122 in
Contact Length - Mating [x]	3.1 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.085 "
Insulation Height	2.15 mm
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.43 mm
Overall Contact Length	0.332 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Fastening Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Material	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Rows	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Color	Insulation Height	Insulation Height	Contact Type	Connector Type	Number of Positions	Shrouding	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length
Samtec Inc. BDL-104-T-F	Push-Pull	0.122 in	3.1 mm	Nylon Polyamide (PA)	8.43 mm	0.332 in	2.54 mm	0.1 in	Solder	2	All	-55 °C	125 °C	Tin	Black	0.085 "	2.15 mm	Male Pin	Header	8	Unshrouded	Through Hole	0.1 in	2.54 mm	3.18 mm	0.125 in	Circular
Samtec Inc. BDL-104-G-F	Push-Pull	0.122 in	3.1 mm	Nylon Polyamide (PA)	8.43 mm	0.332 in	2.54 mm	0.1 in	Solder	2	All	-55 °C	125 °C	Gold	Black	0.085 "	2.15 mm	Male Pin	Header	8	Unshrouded	Through Hole	0.1 in	2.54 mm	3.18 mm	0.125 in	Circular	Gold	0.51 µm	20 µin
Samtec Inc. BDL-104-G-E	Push-Pull			Nylon Polyamide (PA)		7.62 mm	2.54 mm	0.1 in	Solder	2	All	-55 °C	125 °C	Gold	Black	0.07 in	1.78 mm	Male Pin	Header	8	Unshrouded	Through Hole	0.1 in	2.54 mm	3.18 mm	0.125 in	Circular	Gold	0.51 µm	20 µin	0.3 in
