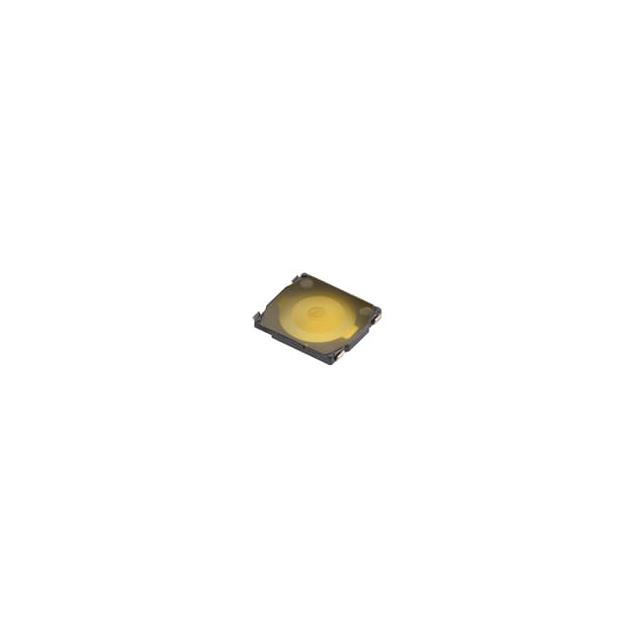

SKSHAAE010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKSHAAE010

Actuator Height off PCB, Vertical [z]	0.35 mm
Actuator Orientation	Top Actuated
Actuator Type	Flush
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	200000 Cycles
Mounting Type	Surface Mount
Operating Force	163 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Outline [x]	2.9 mm
Outline [y]	2.9 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

Part	Mechanical Life	Actuator Type	Actuator Orientation	Switch Function	Illumination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Circuit	Operating Force	Outline [y]	Outline [x]	Termination Style	Switch Travel
Alps Alpine SKSHAAE010	200000 Cycles	Flush	Top Actuated	Off-Mom	Non-Illuminated	Surface Mount	-30 ░C	85 °C	0.35 mm	0.05 A 12 VDC	SPST-NO	163 gf	2.9 mm	2.9 mm	J Lead	0.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
