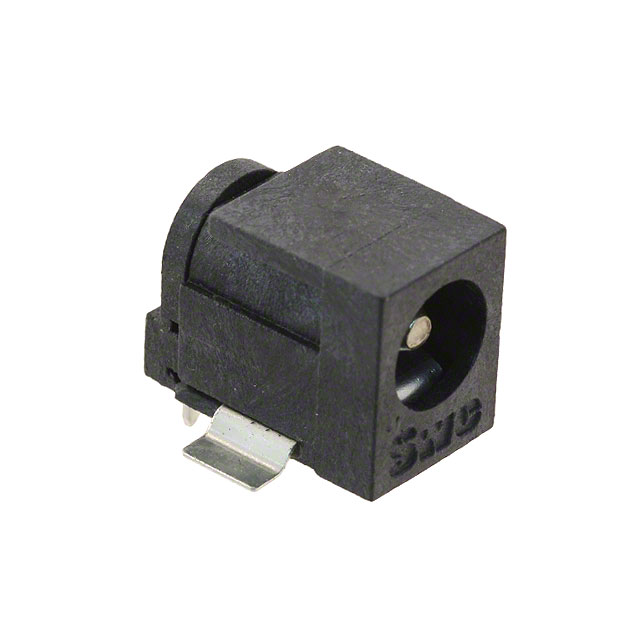

RASH732X
ActiveSwitchcraft Inc.
CONN POWER JACK SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RASH732X
ActiveSwitchcraft Inc.
CONN POWER JACK SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RASH732X |
|---|---|
| Actual Diameter [diameter] | 4.3 mm, 1.22 mm |
| Actual Diameter [diameter] | 0.048 in, 0.169 in |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 5 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Thermoplastic |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Shielding | Unshielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.11 | |
| 10 | $ 1.91 | |||
| 25 | $ 1.81 | |||
| 50 | $ 1.77 | |||
| 100 | $ 1.68 | |||
| 300 | $ 1.47 | |||
| 500 | $ 1.43 | |||
| 1000 | $ 1.30 | |||
Description
General part information
RASH73 Series
Power Barrel Connector Jack Surface Mount, Right Angle; Through Hole
