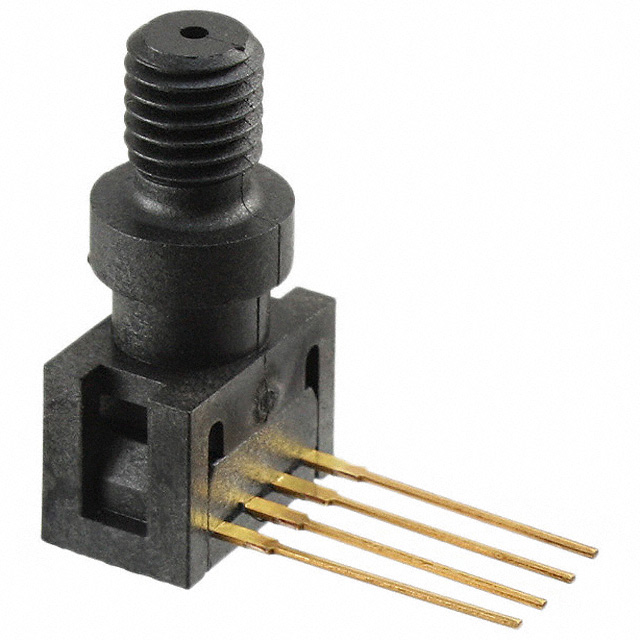

24PCGFM6G
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 250PSIC 1/4" .212V
Deep-Dive with AI
Search across all available documentation for this part.
24PCGFM6G
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 250PSIC 1/4" .212V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 24PCGFM6G |
|---|---|
| Accuracy | 1 % |
| Applications | Board Mount |
| Maximum Pressure | 3447.38 kPa |
| Maximum Pressure | 500 PSI |
| Mounting Type | Through Hole |
| Operating Pressure | 1723.69 kPa |
| Operating Pressure | 250 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 10 V |
| Output [Max] | 212 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 4-SIP Module |
| Port Size | Male, UNF |
| Port Size | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Compound |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 12 V |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 83.10 | |
| 5 | $ 70.09 | |||
| 10 | $ 65.14 | |||
| 25 | $ 59.13 | |||
| 50 | $ 57.23 | |||
Description
General part information
24PCGFM Series
Pressure Sensor ±250PSI (±1723.69kPa) Compound Male - 1/4" (6.35mm) UNF 0 mV ~ 212 mV (10V) 4-SIP Module
