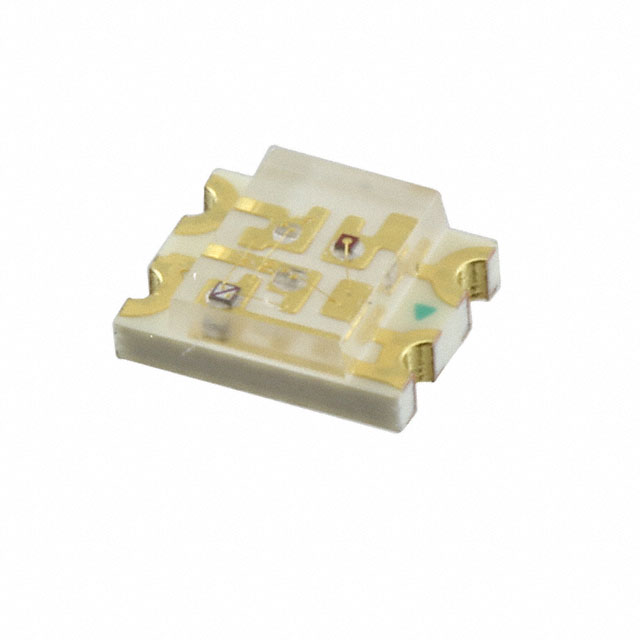

VAOL-S1513RGB
ActiveVisual Communications Company - VCC
LED RGB CLEAR 4SMD
Deep-Dive with AI
Search across all available documentation for this part.
VAOL-S1513RGB
ActiveVisual Communications Company - VCC
LED RGB CLEAR 4SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VAOL-S1513RGB |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 1.1 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 2.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 70 mcd |
| Millicandela Rating [custom] | 180 mcd |
| Millicandela Rating [custom] | 140 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.6 mm |
| Supplier Device Package | 4-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V, 3.3 V, 2 V |
| Wavelength - Dominant [custom] | 624 nm |
| Wavelength - Dominant [custom] | 470 nm |
| Wavelength - Dominant [custom] | 525 nm |
| Wavelength - Peak [custom] | 632 nm |
| Wavelength - Peak [custom] | 518 nm |
| Wavelength - Peak [custom] | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.24 | |
| 10 | $ 2.16 | |||
| 100 | $ 1.66 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.29 | |||
| Digi-Reel® | 1 | $ 3.24 | ||
| 10 | $ 2.16 | |||
| 100 | $ 1.66 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.29 | |||
| Tape & Reel (TR) | 2000 | $ 1.22 | ||
| 6000 | $ 1.19 | |||
Description
General part information
VAOL-S1513 Series
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 4-SMD, No Lead
