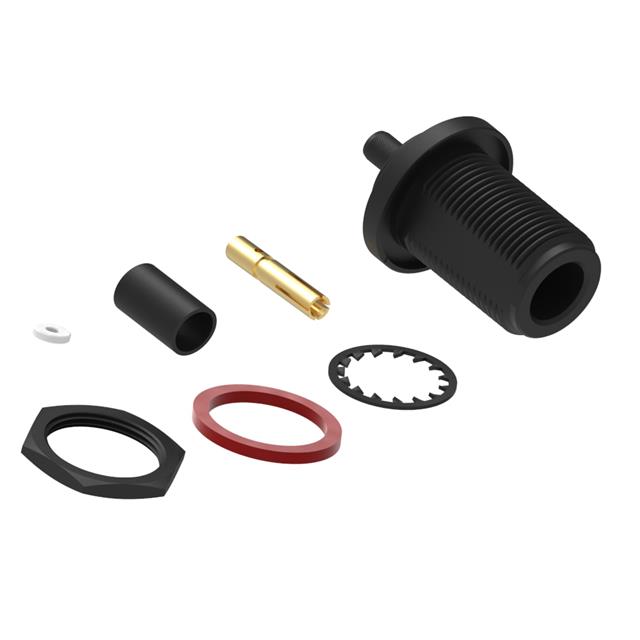

172384-BC

Active

Amphenol RF

N-STRAIGHT JACK BULKHEAD REAR MO

Search across all available documentation for this part.

Active

Amphenol RF

N-STRAIGHT JACK BULKHEAD REAR MO

Technical Specifications

Parameters and characteristics for this part

Specification	172384-BC

Body Finish	Chromate, Black
Body Material	Brass
Cable Group	LMR-195
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Black
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mounting Feature	Contact Termination	Housing Color	Body Material	Cable Group	Center Contact Material	Dielectric Material	Impedance	Mating Cycles	Frequency - Max [Max]	Body Finish	Voltage Rating	Center Contact Plating	Number of Ports	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shield Termination
Amphenol RF 172384-BC	Bulkhead - Front Side Nut	Solder	Black	Brass	LMR-195	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	50 Ohms	500	6000 MHz	Chromate Black	500 V	Gold	1	N Type	-65 ░C	165 °C	Female Socket Jack	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
