05585.R5.02
ActivePrysmian Group

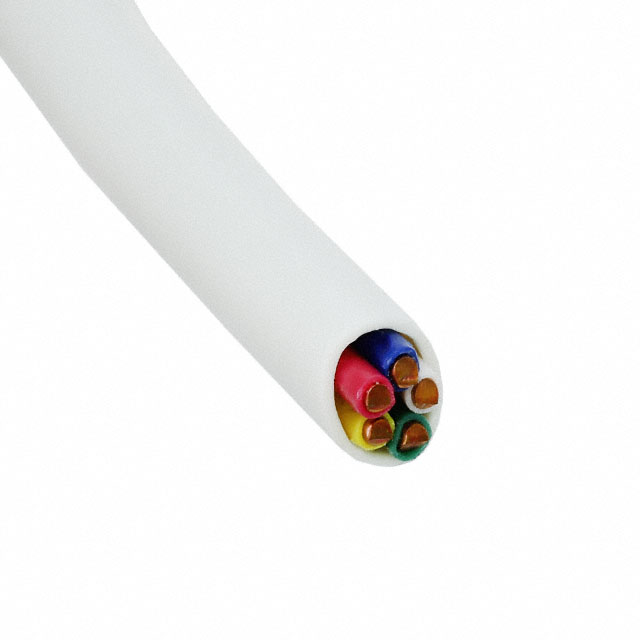

CABLE 5COND 18AWG WHITE 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 05585.R5.02 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Jacket (Insulation) Diameter [diameter] | 4.01 mm |
| Jacket (Insulation) Diameter [diameter] | 0.158 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.203 mm |
| Jacket (Insulation) Thickness | 0.008 in |
| Length | 3000 " |
| Length | 76.2 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 5 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Usage | Thermostat |
| Voltage | 150 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 2 | $ 106.42 | |
| 6 | $ 87.07 | |||
| 10 | $ 67.72 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.52 | |||
| 750 | $ 0.51 | |||
| 1250 | $ 0.49 | |||
| 1750 | $ 0.48 | |||
| 2500 | $ 0.46 | |||
| 6250 | $ 0.43 | |||
| 12500 | $ 0.41 | |||
| 25000 | $ 0.40 | |||
Description
General part information
05585 Series
5 Conductor Multi-Conductor Cable White 18 AWG 100.0' (30.5m)
