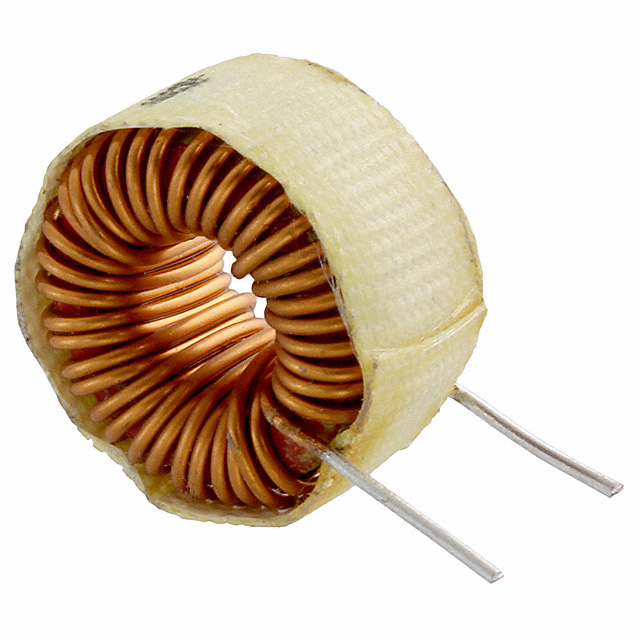

2000-1R2-H-RC

Active

Bourns Inc.

FIXED IND 1.2UH 20.2A 1.7MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2000-1R2-H-RC

Active

Bourns Inc.

FIXED IND 1.2UH 20.2A 1.7MOHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2000-1R2-H-RC

Current Rating (Amps)	20.2 A
DC Resistance (DCR) [Max]	1.7 mOhm
Height - Seated (Max) [Max]	0.41 in
Height - Seated (Max) [Max]	10.41 mm
Inductance	1.2 µH
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Horizontal (Open)
Shielding	Unshielded
Tolerance	20 %
Type	Toroidal

2000 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Type	DC Resistance (DCR) [Max]	Current Rating (Amps)	Shielding	Mounting Type	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)
Bourns Inc. 2000-180-V-RC	105 ░C	-55 °C	15 %	Toroidal	32 mOhm	4.5 A	Unshielded	Through Hole	Radial Vertical (Open)	0.68 "	17.27 mm	10.41 mm	0.41 "	18 µH
Bourns Inc. 2000-3R3-V-RC	105 ░C	-55 °C	20 %	Toroidal	5.3 mOhm	11.1 A	Unshielded	Through Hole	Radial Vertical (Open)	0.68 "	17.27 mm	10.41 mm	0.41 "	3.3 µH
Bourns Inc. 2000-2R7-H-RC	105 ░C	-55 °C	20 %	Toroidal	3 mOhm	14.7 A	Unshielded	Through Hole	Radial Horizontal (Open)					2.7 µH	0.41 in	10.41 mm
Bourns Inc. 2000-100-H-RC	105 ░C	-55 °C	15 %	Toroidal	15 mOhm	6.6 A	Unshielded	Through Hole	Radial Horizontal (Open)					10 µH	0.41 in	10.41 mm
Bourns Inc. 2000-330-H-RC	105 ░C	-55 °C	15 %	Toroidal	54 mOhm	3.5 A	Unshielded	Through Hole	Radial Horizontal (Open)					33 µH	0.41 in	10.41 mm
Bourns Inc. 2000-150-V-RC	105 ░C	-55 °C	15 %	Toroidal	29 mOhm	4.7 A	Unshielded	Through Hole	Radial Vertical (Open)	0.68 "	17.27 mm	10.41 mm	0.41 "	15 µH
Bourns Inc. 2000-220-V-RC	105 ░C	-55 °C	15 %	Toroidal	35 mOhm	4.3 A	Unshielded	Through Hole	Radial Vertical (Open)	0.68 "	17.27 mm	10.41 mm	0.41 "	22 µH
Bourns Inc. 2000-470-H-RC	105 ░C	-55 °C	15 %	Toroidal		3.2 A	Unshielded	Through Hole	Radial Horizontal (Open)					47 µH	0.41 in	10.41 mm	64 mOhm
Bourns Inc. 2000-1R2-H-RC	105 ░C	-55 °C	20 %	Toroidal	1.7 mOhm	20.2 A	Unshielded	Through Hole	Radial Horizontal (Open)					1.2 µH	0.41 in	10.41 mm
Bourns Inc. 2000-4R7-H-RC	105 ░C	-55 °C	20 %	Toroidal	6.4 mOhm	10.1 A	Unshielded	Through Hole	Radial Horizontal (Open)					4.7 ÁH	0.41 in	10.41 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	360	$ 1.36

Description

General part information

2000 Series

1.2 µH Unshielded Toroidal Inductor 20.2 A 1.7mOhm Max Radial, Horizontal (Open)
