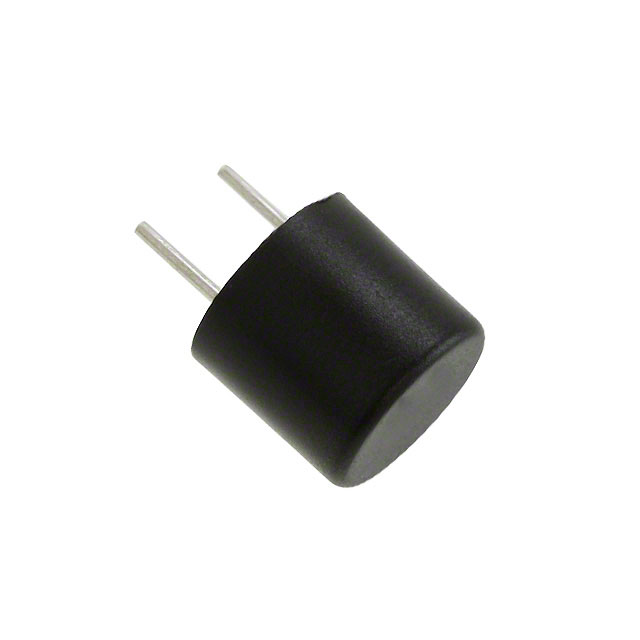

0034.6020 - MSF 250 Short Terminals

0034.6020

Active
SCHURTER Inc.

FUSE, PCB LEADED, 4 A, 250 VAC, MSF 250 SERIES, FAST ACTING, RADIAL LEADED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+2
0034.6020 - MSF 250 Short Terminals

0034.6020

Active
SCHURTER Inc.

FUSE, PCB LEADED, 4 A, 250 VAC, MSF 250 SERIES, FAST ACTING, RADIAL LEADED

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+2

Technical Specifications

Parameters and characteristics for this part

Specification0034.6020
Breaking Capacity @ Rated Voltage40 A
Current Rating (Amps)4 A
Fuse TypeBoard Mount
Melting I²t7.9
Mounting TypeThrough Hole
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Package / CaseVertical, Radial, Can
Response TimeFast Blow
Size / Dimension [diameter]0.335 "
Size / Dimension [diameter]8.5 mm
Size / Dimension [z]0.335 "
Size / Dimension [z]8.5 mm
Voltage Rating - AC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.37
50$ 0.35
NewarkEach 1$ 0.51
10$ 0.50
25$ 0.48
SagerN/A 1$ 0.41
358$ 0.38
1792$ 0.37
3584$ 0.36
17921$ 0.34
35842$ 0.34

Description

General part information

MSF 250 Series

"MSF 250, 4 A, 250 VAC, QUICK-ACTING F, FUSE, SUBMINIATURE FUSE\/
