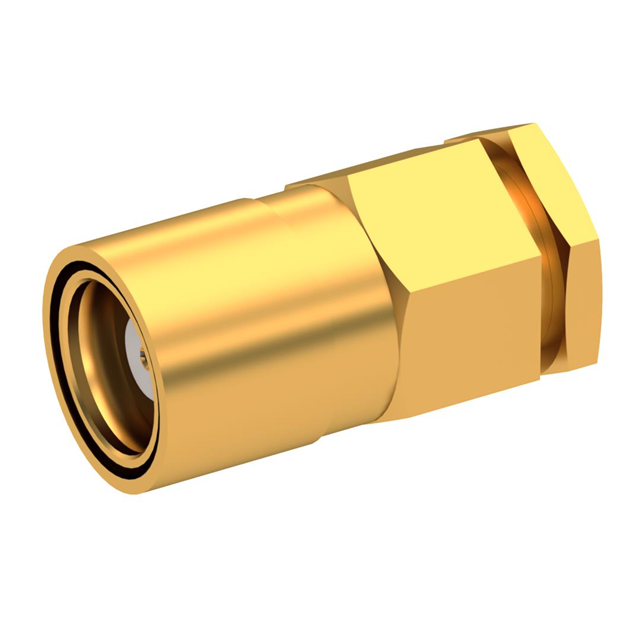

2702-1551-003

Active

Radiall USA, Inc.

75 OHM / STRAIGHT PLUG FEMALE CL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

75 OHM / STRAIGHT PLUG FEMALE CL

Technical Specifications

Parameters and characteristics for this part

Specification	2702-1551-003

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	2 GHz
Housing Color	Gold
Impedance	75 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	165 V

Part	Dielectric Material	Impedance	Body Material	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Housing Color	Mounting Type	Cable Group	Fastening Type	Contact Termination	Insertion Loss	Mating Cycles	Center Contact Material	Voltage Rating	Number of Ports	Center Contact Plating	Frequency - Max [Max]	Body Finish
Radiall USA, Inc. 2702-1551-003	Polytetrafluoroethylene (PTFE)	75 Ohms	Brass	Clamp	-65 ░C	165 °C	Female Socket Plug	Gold	Free Hanging (In-Line)	188 316 RG-174	Snap-On	Solder	0.3 dB	500	Beryllium Copper	165 V	1	Gold	2 GHz	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 44.20

General part information

Connector Plug, Female Socket 75 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
