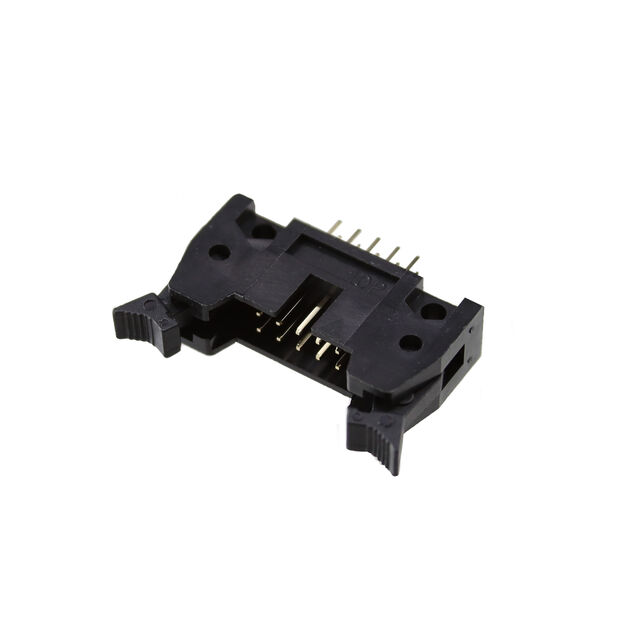

MHR-10-VUAS

Active

Adam Tech

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MHR-10-VUAS

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Short
Insulation Color	Black
Insulation Height	17.2 mm
Insulation Height	0.677 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

MHR-10 Series

Part	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Material	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Connector Type	Material Flammability Rating	Number of Rows	Insulation Material	Number of Positions Loaded	Style	Fastening Type	Number of Positions	Termination	Contact Finish - Mating	Contact Finish - Post	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Insulation Height	Insulation Height	Features
Adam Tech MHR-10-VUAL	0.661 in	16.79 mm	Male Pin	Brass	Flash	2.54 mm	0.1 in	Through Hole	Flash	0.134 in	3.4 mm	Black	-40 °C	105 ░C	Shrouded - 4 Wall	Header	UL94 V-0	2	Polybutylene Terephthalate (PBT) Glass Filled	All	Board to Cable/Wire	Latch Lock/Eject Hooks Long	10	Solder	Gold	Gold	250 VAC	0.1 in	2.54 mm	Square
Adam Tech MHR-10-HUAL			Male Pin	Brass	Flash	2.54 mm	0.1 in	Through Hole Right Angle	Flash			Black	-55 °C	105 ░C	Shrouded - 4 Wall	Header	UL94 V-0	2	Polybutylene Terephthalate (PBT)	All	Board to Cable/Wire	Latch Lock/Eject Hooks Long	10	Solder	Gold	Gold	250 VAC	0.1 in	2.54 mm	Square	3.6 mm	0.142 in	3 A	8.4 mm	0.331 in	Keying Slot
Adam Tech MHR-10-HUAS			Male Pin	Brass	Flash	2.54 mm	0.1 in	Through Hole Right Angle	Flash			Black	-55 °C	105 ░C	Shrouded - 4 Wall	Header	UL94 V-0	2	Polybutylene Terephthalate (PBT)	All	Board to Cable/Wire	Latch Lock/Eject Hooks Short	10	Solder	Gold	Gold	250 VAC	0.1 in	2.54 mm	Square	4 mm	0.157 in	3 A	8.4 mm	0.331 in	Keying Slot
Adam Tech MHR-10-VUAS			Male Pin	Brass	Flash	2.54 mm	0.1 in	Through Hole	Flash	0.134 in	3.4 mm	Black	-55 °C	105 ░C	Shrouded - 4 Wall	Header	UL94 V-0	2	Polybutylene Terephthalate (PBT)	All	Board to Cable/Wire	Latch Lock/Eject Hooks Short	10	Solder	Gold	Gold	250 VAC	0.1 in	2.54 mm	Square			3 A	17.2 mm	0.677 in
