1985234

Active

Phoenix Contact

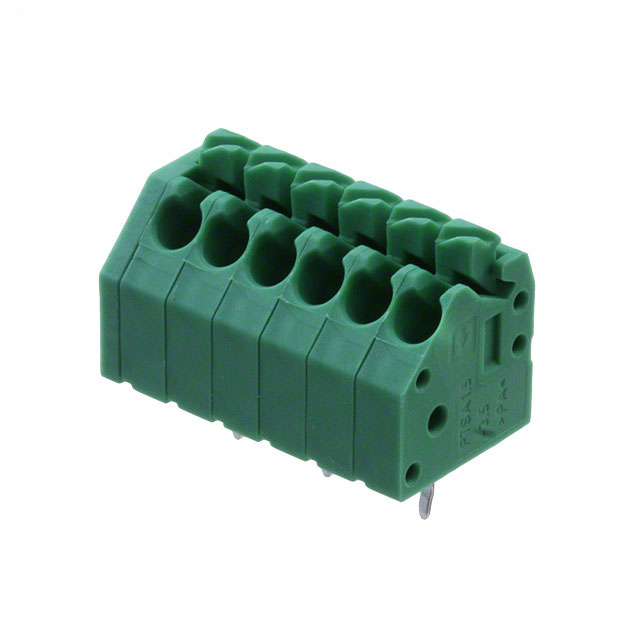

WIRE-TO-BOARD TERMINAL BLOCK, 3.5 MM, 6 POSITIONS, 20 AWG, 16 AWG, 1.5 MM², PUSH IN

Search across all available documentation for this part.

Active

Phoenix Contact

WIRE-TO-BOARD TERMINAL BLOCK, 3.5 MM, 6 POSITIONS, 20 AWG, 16 AWG, 1.5 MM², PUSH IN

Technical Specifications

Parameters and characteristics for this part

Specification	1985234

Color	Green
Current	2 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	135 °
Mating Orientation	45 °
Mounting Type	Through Hole
Number of Levels	1
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	6
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	16 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp

Fixed Terminal Blocks PTSA 1.5/23-3.5-F

Part	Wire Termination	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Mounting Type	Number of Levels	Mating Orientation	Mating Orientation	Color	Current	Voltage	Housing Material	Positions Per Level
Phoenix Contact 1985234	Screwless - Spring Cage Tension Clamp	16 AWG	24 AWG	3.5 mm	0.138 in	Through Hole	1	135 °	45 °	Green	2 A	300 V	Polyamide (PA) Nylon	6
Phoenix Contact 1985179	Screwless - Spring Cage Tension Clamp	16 AWG	24 AWG	3.5 mm	0.138 in	Through Hole	1	135 °	45 °	Green	2 A	300 V	Polyamide (PA) Nylon	23
Phoenix Contact 1985140	Screwless - Spring Cage Tension Clamp	16 AWG	24 AWG	3.5 mm	0.138 in	Through Hole	1	135 °	45 °	Green	2 A	300 V	Polyamide (PA) Nylon	20
Phoenix Contact 1701057	Screwless - Spring Cage Tension Clamp	16 AWG	24 AWG	3.5 mm	0.138 in	Through Hole	1	135 °	45 °	Yellow	2 A	300 V		2
Phoenix Contact 1985357	Screwless - Spring Cage Tension Clamp	16 AWG	24 AWG	3.5 mm	0.138 in	Through Hole	1	135 °	45 °	Green	2 A	300 V	Polyamide (PA) Nylon	18
Phoenix Contact 1985030	Screwless - Spring Cage Tension Clamp	16 AWG	24 AWG	3.5 mm	0.138 in	Through Hole	1	135 °	45 °	Green	2 A	300 V	Polyamide (PA) Nylon	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fixed Terminal Blocks PTSA 1.5/23-3.5-F
