317-87-134-41-022101

Active

PRECI-DIP SA

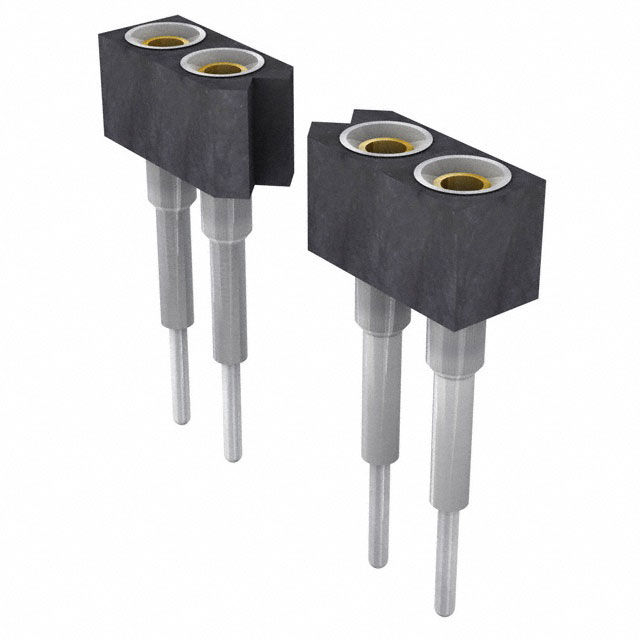

CONN SOCKET 34POS 0.07 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

317-87-134-41-022101

Active

PRECI-DIP SA

CONN SOCKET 34POS 0.07 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	317-87-134-41-022101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.07 in
Pitch - Mating	1.78 mm
Termination	Solder

317-87 Series

Part	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish - Mating	Material Flammability Rating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Material	Termination	Contact Shape	Fastening Type	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Number of Rows	Insulation Color	Contact Type	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Post	Number of Positions	Contact Length - Post
PRECI-DIP SA 317-87-137-41-005101	0.165 in	4.2 mm	0.07 in	1.78 mm	Through Hole	Flash	Gold	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	All	Beryllium Copper	Solder	Circular	Push-Pull	37	3.18 mm	0.125 in	Socket	1	Black	Female Socket	Tin
PRECI-DIP SA 317-87-134-41-022101			0.07 in	1.78 mm	Through Hole	Flash	Gold	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	All	Beryllium Copper	Solder	Circular	Push-Pull	34		0.126 in	Socket	1	Black	Female Socket	Tin	0.335 "	8.51 mm	3.2 mm
PRECI-DIP SA 317-87-115-01-687101	0.165 in	4.2 mm	0.07 in	1.78 mm	Through Hole	Flash	Gold	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	All	Beryllium Copper	Solder	Circular	Push-Pull	15	3.18 mm	0.125 in	Socket	1	Black	Female Socket	Tin
PRECI-DIP SA 317-87-114-01-687101	0.165 in	4.2 mm	0.07 in	1.78 mm	Through Hole	Flash	Gold	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	All	Beryllium Copper	Solder	Circular	Push-Pull	14	3.18 mm	0.125 in	Socket	1	Black	Female Socket	Tin
PRECI-DIP SA 317-87-112-01-687101	0.165 in	4.2 mm	0.07 in	1.78 mm	Through Hole	Flash	Gold	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	All	Beryllium Copper	Solder	Circular	Push-Pull	12	3.18 mm	0.125 in	Socket	1	Black	Female Socket	Tin
PRECI-DIP SA 317-87-110-41-022101			0.07 in	1.78 mm	Through Hole	Flash	Gold	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	All	Beryllium Copper	Solder	Circular	Push-Pull	10		0.126 in	Socket	1	Black	Female Socket	Tin	0.335 "	8.51 mm	3.2 mm
PRECI-DIP SA 317-87-110-41-005101	0.165 in	4.2 mm	0.07 in	1.78 mm	Through Hole	Flash	Gold	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	All	Beryllium Copper	Solder	Circular	Push-Pull	10	3.18 mm	0.125 in	Socket	1	Black	Female Socket	Tin
PRECI-DIP SA 317-87-116-01-687101	0.165 in	4.2 mm	0.07 in	1.78 mm	Through Hole	Flash	Gold	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	All	Beryllium Copper	Solder	Circular	Push-Pull		3.18 mm	0.125 in	Socket	1	Black	Female Socket	Tin				16
PRECI-DIP SA 317-87-135-41-022101			0.07 in	1.78 mm	Through Hole	Flash	Gold	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	All	Beryllium Copper	Solder	Circular	Push-Pull	35		0.126 in	Socket	1	Black	Female Socket	Tin	0.335 "	8.51 mm	3.2 mm
PRECI-DIP SA 317-87-109-41-026101			0.07 in	1.78 mm	Through Hole	Flash	Gold	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	All	Beryllium Copper	Solder	Circular	Push-Pull	9			Socket	1	Black	Female Socket	Tin	0.394 "	10 mm	4 mm		0.157 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	160	$ 4.25

Description

General part information

317-87 Series

34 Position Socket Connector 0.070" (1.78mm) Through Hole Gold
