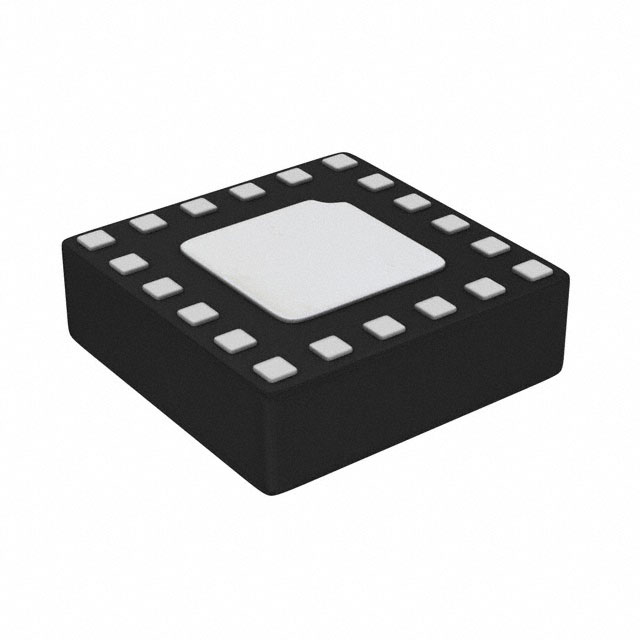

SKY13473-569LF
ActiveSkyworks Solutions Inc.
IC RF SWITCH SP10T 2.7GHZ 20QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKY13473-569LF
ActiveSkyworks Solutions Inc.
IC RF SWITCH SP10T 2.7GHZ 20QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY13473-569LF |
|---|---|
| Circuit | SP10T |
| Frequency Range [Max] | 2.7 GHz |
| Frequency Range [Min] | 400 MHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.6 dB |
| Isolation | 30 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 20-WFQFN Exposed Pad |
| RF Type | 3G/4G |
| Supplier Device Package | 20-QFN (2.4x2.4) |
| Test Frequency | 2 GHz |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.51 | |
| Digi-Reel® | 1 | $ 2.51 | ||
| Tape & Reel (TR) | 3000 | $ 1.15 | ||
| 6000 | $ 1.11 | |||
Description
General part information
SKY13473 Series
RF Switch IC 3G/4G SP10T 2.7 GHz 50Ohm 20-QFN (2.4x2.4)
