UF1606FCT_T0_00001

Active

Panjit International Inc.

DIODE ARRAY GP 600V 16A ITO220AB

Search across all available documentation for this part.

Active

Panjit International Inc.

DIODE ARRAY GP 600V 16A ITO220AB

Technical Specifications

Parameters and characteristics for this part

Specification	UF1606FCT_T0_00001

Current - Average Rectified (Io) (per Diode)	16 A
Current - Reverse Leakage @ Vr	1 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C

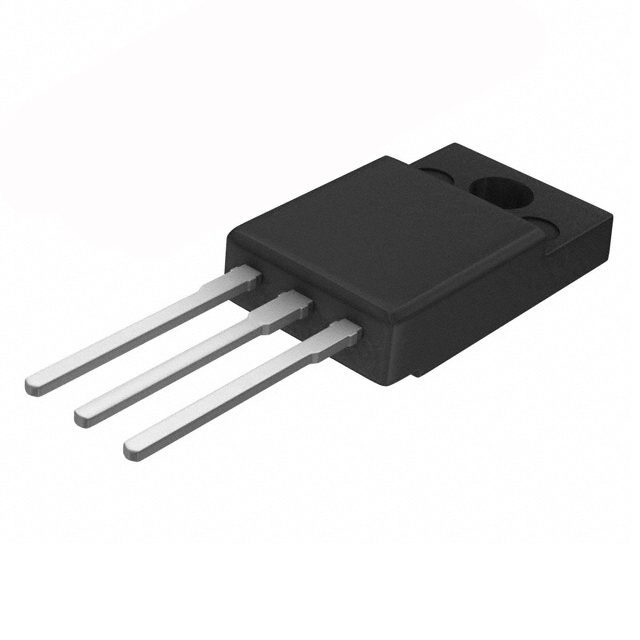

Package / Case	TO-220-3 Full Pack
Speed	200 mA, 500 ns
Supplier Device Package	ITO-220AB
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Mounting Type	Technology	Current - Reverse Leakage @ Vr	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case
Panjit International Inc. UF1606FCT_T0_00001	Through Hole	Standard	1 µA	ITO-220AB	16 A	600 V	1.7 V	1 Pair Common Cathode	200 mA 500 ns	150 °C	-65 C	TO-220-3 Full Pack
Panjit International Inc. UF1606CT_T0_00001	Through Hole	Standard	1 µA	TO-220AB	8 A	600 V	1.7 V	1 Pair Common Cathode	200 mA 500 ns	150 °C	-55 °C	TO-220-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 600 V 16A Through Hole TO-220-3 Full Pack
