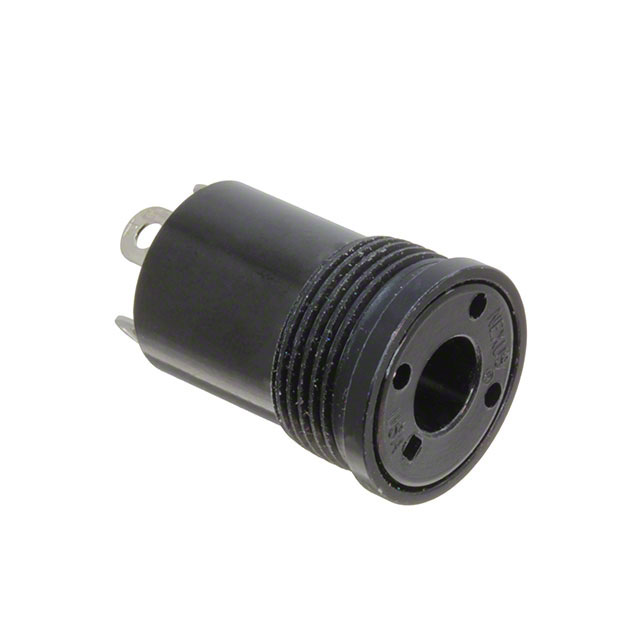

TJT-120-9

Active

Amphenol NEXUS Technologies

TELEPHONE JACK PANEL MOUNT THREA

Search across all available documentation for this part.

Active

Amphenol NEXUS Technologies

TELEPHONE JACK PANEL MOUNT THREA

Technical Specifications

Parameters and characteristics for this part

Specification	TJT-120-9

Body Color	Black
Connector Type	Phone Jack
Contact Material	Beryllium Copper
Contact Material - Plating [custom]	Nickel
Features	Mounting Hardware
Gender	Female
Housing Material	Phenolic
Internal Switch(s)	False
Mating Length/Depth [z]	0.761 in
Mating Length/Depth [z]	19.33 mm
Number of Positions/Contacts [custom]	4
Number of Positions/Contacts [custom]	4
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)
Thread Size	11/16-24 UNEF-2A

Part	Connector Type	Gender	Contact Material - Plating [custom]	Contact Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Shielding	Internal Switch(s)	Features	Panel Hole Size	Panel Hole Size	Signal Lines	Termination	Thread Size	Mating Length/Depth [z]	Mating Length/Depth [z]	Body Color	Housing Material
Amphenol NEXUS Technologies TJT-120XL	Phone Jack	Female	Nickel	Beryllium Copper	4	4	Unshielded		Mounting Hardware	17.86 mm	0.703 in	Stereo	Solder Eyelet(s)
Amphenol NEXUS Technologies TJT-120-9	Phone Jack	Female	Nickel	Beryllium Copper	4	4	Unshielded		Mounting Hardware			Stereo	Solder Eyelet(s)	11/16-24 UNEF-2A	0.761 in	19.33 mm	Black	Phenolic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phone Jack Stereo (4 Conductor, TRRS) Connector Solder Eyelet(s)
