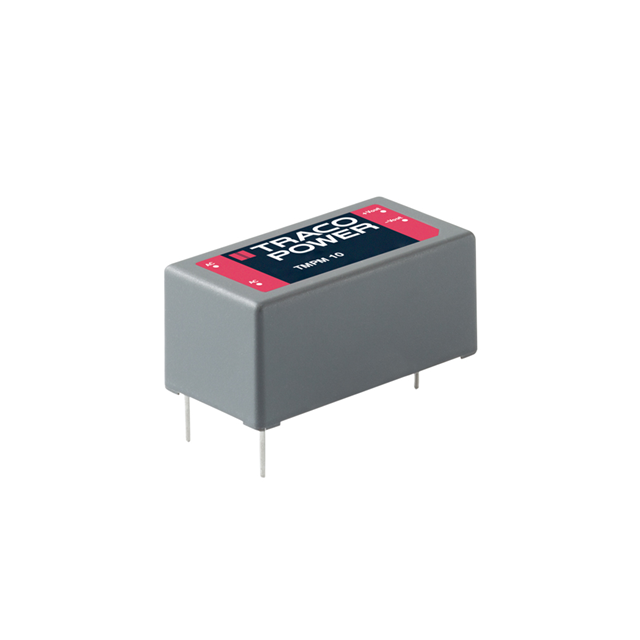

TMPM 10103
ActiveTraco Power
AC/DC POWER SUPPLY SINGLE-OUT 3.3V 2.5A 8.3W 4-PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMPM 10103
ActiveTraco Power
AC/DC POWER SUPPLY SINGLE-OUT 3.3V 2.5A 8.3W 4-PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMPM 10103 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE, cURus, CB |
| Current - Output (Max) [Max] | 2.5 A |
| Efficiency | 70 % |
| Features | Universal Input, SCP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 8.3 W |
| Size / Dimension [x] | 2.06 in |
| Size / Dimension [x] | 52.4 mm |
| Size / Dimension [y] | 1.07 in |
| Size / Dimension [y] | 27.2 mm |
| Size / Dimension [z] | 23.5 mm |
| Size / Dimension [z] | 0.93 in |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 37.90 | |
| 10 | $ 34.80 | |||
| 25 | $ 33.63 | |||
| 50 | $ 32.78 | |||
| 100 | $ 31.95 | |||
| 250 | $ 30.88 | |||
| 500 | $ 27.27 | |||
Description
General part information
TMPM 10 Series
Enclosed AC DC Converters 1 Output 3.3V 2.5A 85 ~ 264 VAC, 120 ~ 370 VDC Input
