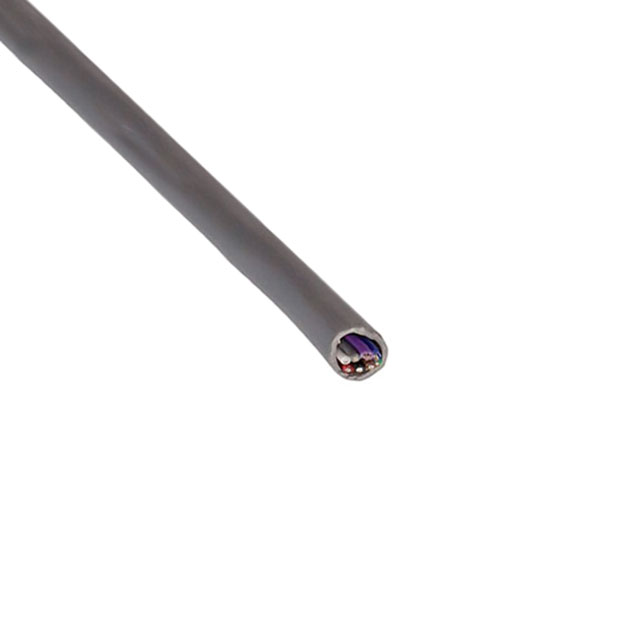

M4608 SL002

Active

ALPHA WIRE

CABLE 10COND 24AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 10COND 24AWG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M4608 SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	6.27 mm
Jacket (Insulation) Diameter [diameter]	0.247 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	24 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Cable Type	Features	Jacket Color	Shield Coverage	Shield Type	Voltage	Conductor Insulation	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Conductor Material	Number of Conductors	Wire Gauge	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]
ALPHA WIRE M4608 SL002	-20 C	80 C	UL Style 2464	Multi-Conductor	Drain Wire Rip Cord	Slate	100 %	Foil	300 V	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	6.27 mm	0.247 "	Poly-Vinyl Chloride (PVC)	Copper Tinned	10	24 AWG	Aluminum	32 AWG	7
ALPHA WIRE M4608 SL005	-20 C	80 C	UL Style 2464	Multi-Conductor	Drain Wire Rip Cord	Slate	100 %	Foil	300 V	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m	6.27 mm	0.247 "	Poly-Vinyl Chloride (PVC)	Copper Tinned	10	24 AWG	Aluminum	32 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Conductor Multi-Conductor Cable Slate 24 AWG Foil 500.0' (152.4m)
