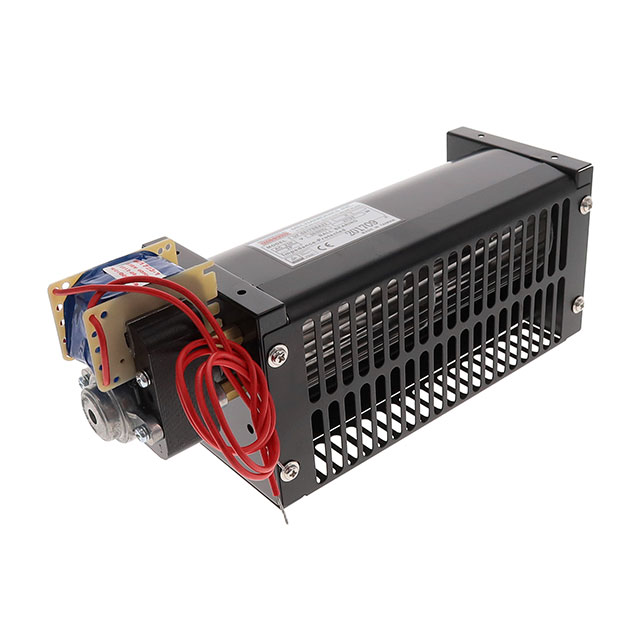

UF6017SBA23H-L
ActiveMechatronics Bearing Group
FAN BLWR CF 230VAC 266X98X90MM
Deep-Dive with AI
Search across all available documentation for this part.
UF6017SBA23H-L
ActiveMechatronics Bearing Group
FAN BLWR CF 230VAC 266X98X90MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UF6017SBA23H-L |
|---|---|
| Air Flow | 2.49 mł/min |
| Air Flow | 89 CFM |
| Approval Agency | CE, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.2 A |
| Fan Type | Blower, Cross Flow |
| Material - Blade | Aluminum |
| Material - Frame | Steel |
| Noise | 42 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 25 W |
| RPM | 2000 RPM |
| Size / Dimension [x] | 266 mm |
| Size / Dimension [z] | 90 mm |
| Static Pressure | 0.22 in H2O |
| Static Pressure | 54.8 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 230 VAC |
| Weight | 2.8 lbs |
| Weight | 1.3 kg |
| Width [y] | 98 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.88 | |
| 10 | $ 53.27 | |||
| 26 | $ 49.77 | |||
| 50 | $ 49.06 | |||
| 100 | $ 45.21 | |||
Description
General part information
UF6017 Series
Fan Blower, Cross Flow 230VAC Rectangular - 266mm L x 90mm H Ball 89.0 CFM (2.49m³/min) 2 Wire Leads
