SR2P-05

Active

IDEC

RELAY SOCKET, DIN RAIL, SCREW, 8 PINS, 10 A, 300 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

SR2P-05

Active

IDEC

RELAY SOCKET, DIN RAIL, SCREW, 8 PINS, 10 A, 300 V

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SR2P-05

For Use With/Related Products	RR Series
Mounting Type	DIN Rail
Number of Positions	8
Termination Style	Screw Terminal
Type	Socket

SR2P Series

Part	For Use With/Related Products	Mounting Type	Number of Positions	Type	Termination Style
IDEC SR2P-05	RR Series	DIN Rail	8	Socket	Screw Terminal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.60
		10	$ 5.88
		25	$ 5.62
		50	$ 5.43
		100	$ 5.24
		250	$ 5.00
		500	$ 4.83
		1000	$ 4.67
Newark	Each	1	$ 7.43
		5	$ 7.32
		10	$ 7.21
		25	$ 7.05
		50	$ 6.91
		100	$ 6.76

Description

General part information

SR2P Series

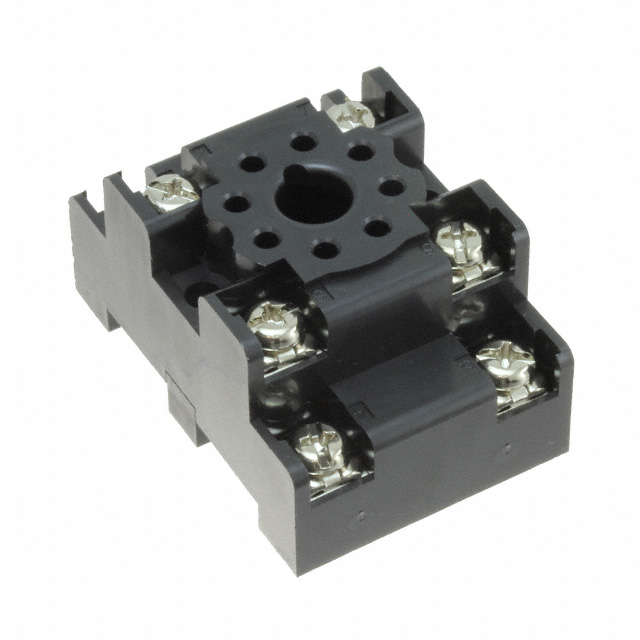

The SR2P-05 is a 8-pin octal relay socket with screw terminals. Suitable for use with RR2P relays, RTE-P1, GT3 (8-pin), GT5P and GE1A timer. This socket is ideal for snap-mount/surface mounting.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
