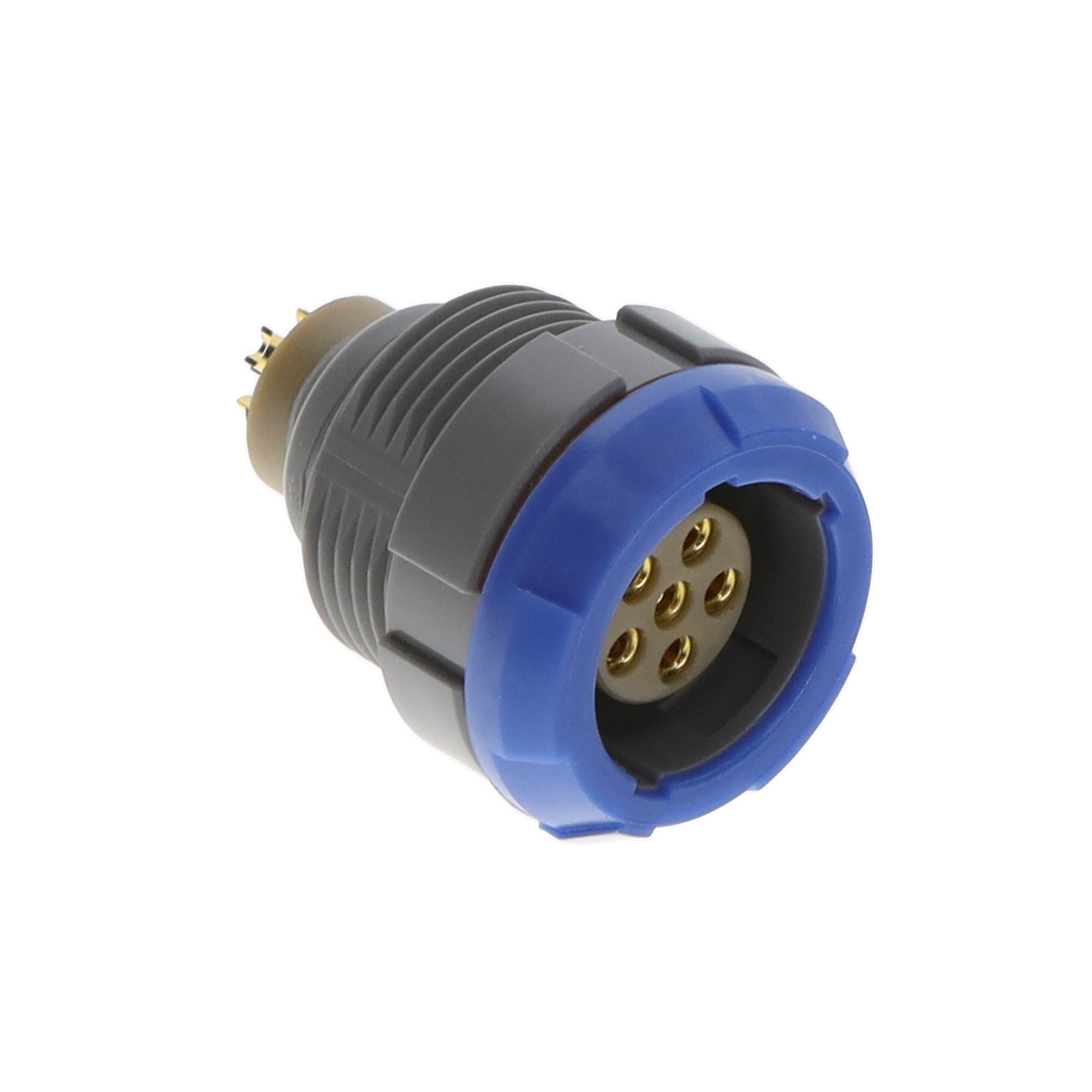

CNB.M06.GLLA

Active

LEMO

CONN RCPT FMALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	CNB.M06.GLLA

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray, Blue
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	12 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP66
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	6
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	B
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	M06
Shielding	Unshielded

Part	Color	Orientation	Primary Material	Number of Positions	Insert Material	Applications	Contact Finish - Mating	Shielding	Mounting Feature	Current Rating (Amps)	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shell Material	Fastening Type	Ingress Protection
LEMO CNB.M06.GLLA	Blue Gray	B	Plastic	6	Polyetheretherketone (PEEK)	Automotive Industrial Medical Testing Equipment & Measurement	Gold	Unshielded	Bulkhead - Rear Side Nut	12 A	M06	150 °C	-50 °C	Receptacle Female Sockets	Polysulfone (PSU)	Detent Lock Push-Pull	IP66
LEMO CNB.M06.GLLR	Gray Red	B	Plastic	6	Polyetheretherketone (PEEK)	Automotive Industrial Medical Testing Equipment & Measurement	Gold	Unshielded	Bulkhead - Rear Side Nut	12 A	M06	150 °C	-50 °C	Receptacle Female Sockets	Polysulfone (PSU)	Detent Lock Push-Pull	IP66

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
