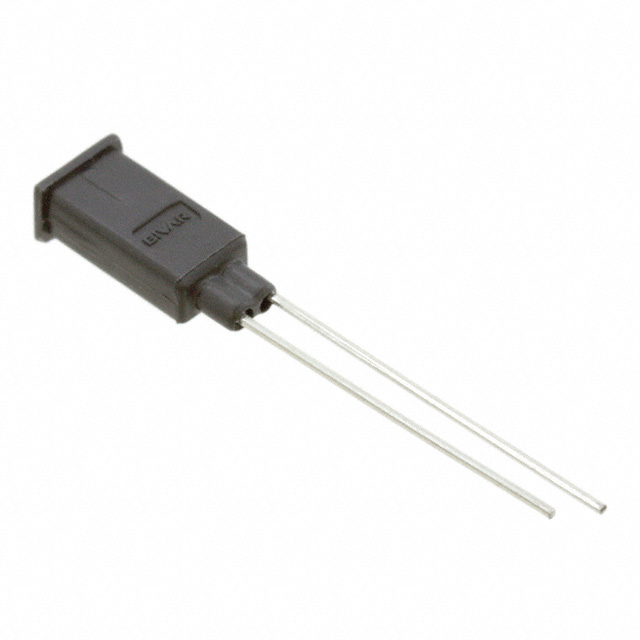

PMR4AD - PMR4AD

PMR4AD

Active
Bivar Inc.

STANDARD PANEL MOUNT INDICATORS, 2 LEADED, 2MM X 4MM RECTANGULAR, AMBER LED W\ DIFFUSED LENS / BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
PMR4AD - PMR4AD

PMR4AD

Active
Bivar Inc.

STANDARD PANEL MOUNT INDICATORS, 2 LEADED, 2MM X 4MM RECTANGULAR, AMBER LED W\ DIFFUSED LENS / BAG

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationPMR4AD
Current150 mA
Lamp ColorAmber
Lens Size [x]2.1 mm
Lens Size [y]4 mm
Lens StyleRectangle with Flat Top
Lens TransparencyDiffused
Millicandela Rating6 mcd
Panel Cutout Dimensions [x]5.59 mm
Panel Cutout Dimensions [x]0.22 "
Panel Cutout Dimensions [y]0.14 "
Panel Cutout Dimensions [y]3.56 mm
Panel Cutout ShapeRectangle
Termination StylePC Pin
TypeLED
Viewing Angle120 °
Voltage2 V
Wavelength - Peak605 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 2.17
10$ 1.45
100$ 1.12
500$ 1.01
1000$ 0.87
2000$ 0.82
5000$ 0.80
10000$ 0.79
NewarkEach 100$ 1.38
500$ 1.27
1000$ 1.14
2500$ 0.92
5000$ 0.89

Description

General part information

PMR4AD Series

LED Panel Indicator Amber Diffused 120° 2V 150mA PC Pin

Documents

Technical documentation and resources

Datasheet

Datasheet
