Z8FMC16100QKEG

Active

Zilog

OTHER SERIES 20MHZ QFN-32(5X5) MICROCONTROLLERS (MCU/MPU/SOC) ROHS

Search across all available documentation for this part.

Active

Zilog

OTHER SERIES 20MHZ QFN-32(5X5) MICROCONTROLLERS (MCU/MPU/SOC) ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	Z8FMC16100QKEG

Connectivity	LINbus, I2C, IrDA, SPI, UART/USART
Core Processor	eZ8
Core Size	8-Bit
Data Converters [custom]	8
Data Converters [custom]	10
Mounting Type	Surface Mount
Number of I/O	17
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

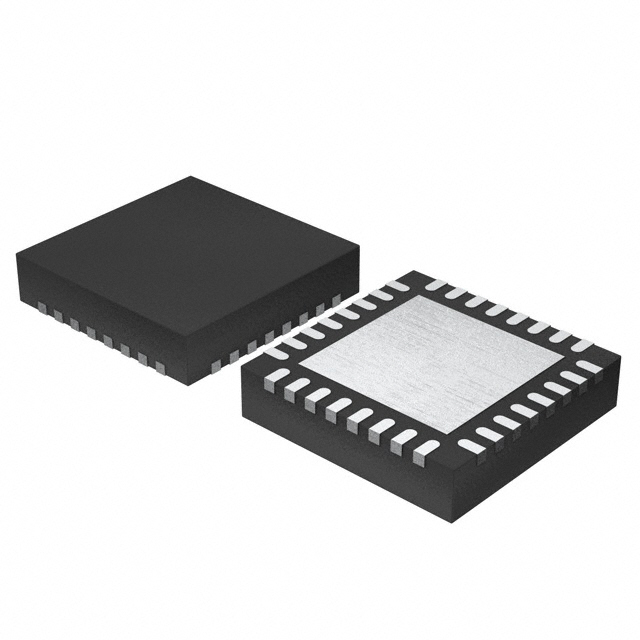

Package / Case	32-VFQFN Exposed Pad
Peripherals	WDT, Motor Control PWM, Brown-out Detect/Reset, POR, PWM
Program Memory Size	16 KB
Program Memory Type	FLASH
RAM Size	512
Speed	20 MHz
Supplier Device Package	32-QFN (5x5)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

Part	Connectivity	Data Converters [custom]	Data Converters [custom]	Speed	Program Memory Type	Core Size	Oscillator Type	Core Processor	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Supplier Device Package	Peripherals	Mounting Type	Number of I/O	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	RAM Size
Zilog Z8FMC16100QKEG	I2C IrDA LINbus SPI UART/USART	8	10	20 MHz	FLASH	8-Bit	Internal	eZ8	3.6 V	2.7 V	32-QFN (5x5)	Brown-out Detect/Reset Motor Control PWM POR PWM WDT	Surface Mount	17	16 KB	105 °C	-40 °C	32-VFQFN Exposed Pad	512
Zilog Z8FMC16100AKEG	I2C IrDA LINbus SPI UART/USART	8	10	20 MHz	FLASH	8-Bit	Internal	eZ8	3.6 V	2.7 V	32-LQFP (7x7)	Brown-out Detect/Reset Motor Control PWM POR PWM WDT	Surface Mount	17	16 KB	105 °C	-40 °C	32-LQFP	512

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

eZ8 Encore!® MC™ Microcontroller IC 8-Bit 20MHz 16KB (16K x 8) FLASH 32-QFN (5x5)
