Q-330600001001M
ActiveAmphenol Custom Cable

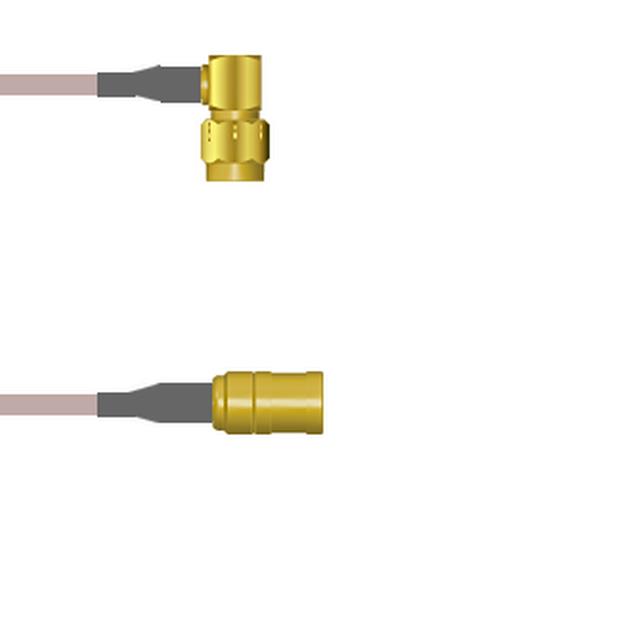

COAX CBL SMA TO SMB 3.3'
Deep-Dive with AI
Search across all available documentation for this part.
Q-330600001001M
ActiveAmphenol Custom Cable
COAX CBL SMA TO SMB 3.3'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-330600001001M |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMB Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 1 m |
| Length | 3.3 ft |
| Length | 39.4 in |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 105.75 | |
| 25 | $ 103.68 | |||
| 50 | $ 101.62 | |||
| 100 | $ 99.55 | |||
| 250 | $ 97.48 | |||
Description
General part information
Q-330600 Series
Cable Assembly Coaxial SMA to SMB RG-178 39.4" (1.0m) 3.3'
