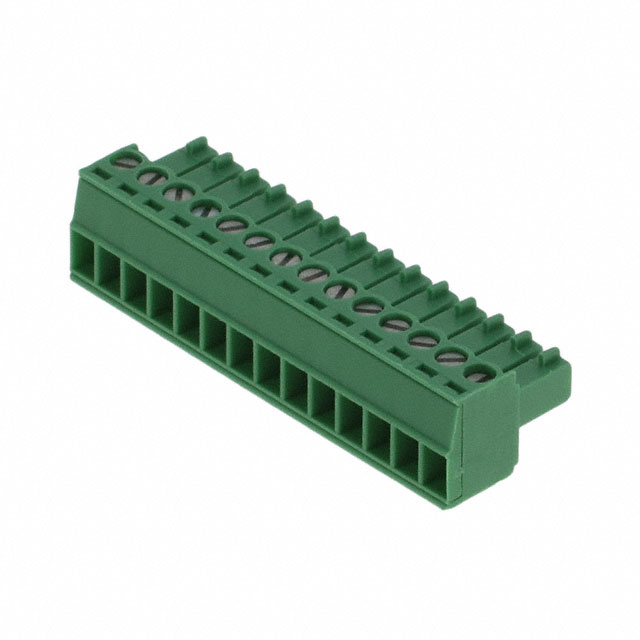

SH14-3,50

Active

Altech Corporation

14 -30℃~+105℃ 1 3.5MM GREEN PLUGGABLE SYSTEM TERMINAL BLOCK ROHS

Search across all available documentation for this part.

Active

Altech Corporation

14 -30℃~+105℃ 1 3.5MM GREEN PLUGGABLE SYSTEM TERMINAL BLOCK ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	SH14-3,50

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Nickel
Current - IEC	8 A
Current - UL	11 A
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	14
Screw Size	M2
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	2.2 Lb-In
Torque - Screw	0.25 Nm
Type	Plug, Female Sockets
Voltage - IEC	130 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm˛ [Max]	1.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.25 mm˛
Wire Strip Length	8 mm

Part	Current - UL	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Strip Length	Contact Material	Color	Number of Positions	Termination Style	Current - IEC	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Positions Per Level	Voltage - IEC	Screw Size	Contact Mating Finish	Torque - Screw	Torque - Screw	Mounting Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Type	Number of Levels	Housing Material
TE Connectivity Raychem Cable Protection SH14-5,08-K
Altech Corporation SH14-5,08-K
Altech Corporation SH14-5,08
Altech Corporation SH14-3,81
TE Connectivity Raychem Cable Protection SH14-7,50
Altech Corporation SH14-7,50
Altech Corporation SH14-3,81-K
Altech Corporation SH14-3,50	11 A	1.5 mm˛	0.25 mm˛	8 mm	Copper Alloy	Green	14	Screw - Rising Cage Clamp	8 A	3.5 mm	0.138 in	-30 ░C	105 ░C	UL94 V-0	14	130 V	M2	Nickel	2.2 Lb-In	0.25 Nm	Free Hanging (In-Line)	14 AWG	30 AWG	300 V	Plug Female Sockets	1	Polyamide (PA) Nylon
Altech Corporation SH14-3,50-K
Altech Corporation SH14-5,08IA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
