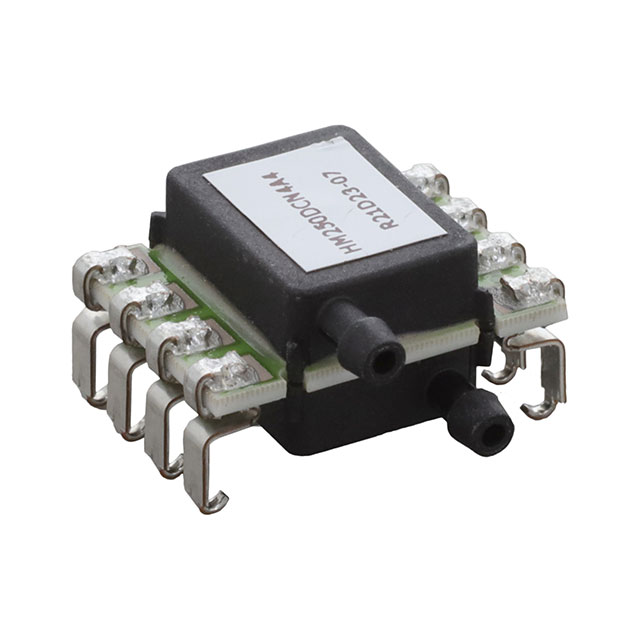

ELVH-M250D-HRRJ-C-N4A4

Active

Amphenol All Sensors Corporation

SENSOR 3.63PSID 0.06" 14BIT

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 3.63PSID 0.06" 14BIT

Technical Specifications

Parameters and characteristics for this part

Specification	ELVH-M250D-HRRJ-C-N4A4

Accuracy	0.25 %
Features	Temperature Compensated
Maximum Pressure [Max]	12.33 PSI
Maximum Pressure [Max]	85 kPa
Mounting Type	Surface Mount
Operating Pressure [Max]	25 kPa
Operating Pressure [Min]	-2 kPa
Output	14 b
Output Type	I2C
Package / Case	Dual Ports, J-Lead, 8-SMD, Same Side
Port Size	Tube, Male, Dual
Port Size	0.06 "
Port Size	1.6 mm
Port Style	Barbed
Pressure Type	Differential
Termination Style	J Lead
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

Part	Port Size	Port Size	Port Size	Pressure Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Operating Pressure [Min]	Operating Pressure [Max]	Port Style	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Package / Case	Output	Mounting Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Supplier Device Package	Package / Case	Package / Case
Amphenol All Sensors Corporation ELVH-M250D-HRRJ-I-N3A5	Dual Male Tube	0.06 "	1.6 mm	Differential	2.7 V	5.5 V	J Lead	-2 kPa	25 kPa	Barbed	I2C	85 °C	-20 C	Temperature Compensated	8-SMD Dual Ports J-Lead Same Side	14 b	Surface Mount	12.33 PSI	85 kPa	0.25 %
Amphenol All Sensors Corporation ELVH-M250D-HRRD-C-NSA4	Dual Male Tube	0.06 "	1.6 mm	Differential	2.7 V	5.5 V	PC Pin	-2 kPa	25 kPa	Barbed	SPI			Temperature Compensated	8-DIP Dual Ports Same Side	14 b	Through Hole	12.33 PSI	85 kPa	0.25 %	8-DIP	12.8 mm	0.504 in
Amphenol All Sensors Corporation ELVH-M250D-HRRJ-C-N4A4	Dual Male Tube	0.06 "	1.6 mm	Differential	2.7 V	5.5 V	J Lead	-2 kPa	25 kPa	Barbed	I2C			Temperature Compensated	8-SMD Dual Ports J-Lead Same Side	14 b	Surface Mount	12.33 PSI	85 kPa	0.25 %
Amphenol All Sensors Corporation ELVH-M250D-HRRJ-C-NAA4	Dual Male Tube	0.06 "	1.6 mm	Differential	2.7 V	5.5 V	J Lead	-2 kPa	25 kPa	Barbed	Analog Voltage			Temperature Compensated	8-SMD Dual Ports J-Lead Same Side		Surface Mount	12.33 PSI	85 kPa	0.25 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor -0.29PSI ~ 3.63PSI (-2kPa ~ 25kPa) Differential Male - 0.06" (1.6mm) Tube, Dual 14 b 8-SMD, J-Lead, Dual Ports, Same Side
