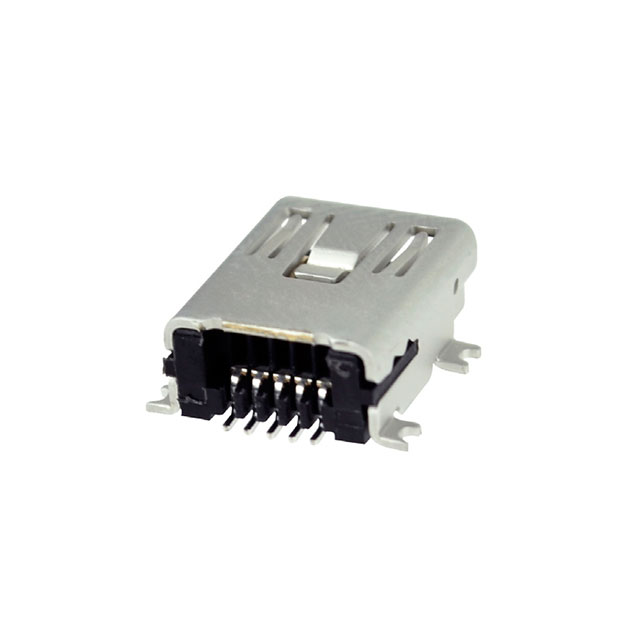

UJ2-MBH-2-SMT-TR
ActiveCUI Devices
CONN RCPT USB2.0 MINI B SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UJ2-MBH-2-SMT-TR
ActiveCUI Devices
CONN RCPT USB2.0 MINI B SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UJ2-MBH-2-SMT-TR |
|---|---|
| Connector Type | USB - mini B |
| Contact Finish | Gold |
| Features | Solder Retention, Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 5000 |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Shell/Shielding Material | Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.67 | |
| Digi-Reel® | 1 | $ 0.67 | ||
| Tape & Reel (TR) | 1500 | $ 0.34 | ||
Description
General part information
UJ2-MBH Series
USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
