ML17-8-450/115/136
ActivePEPPERL+FUCHS

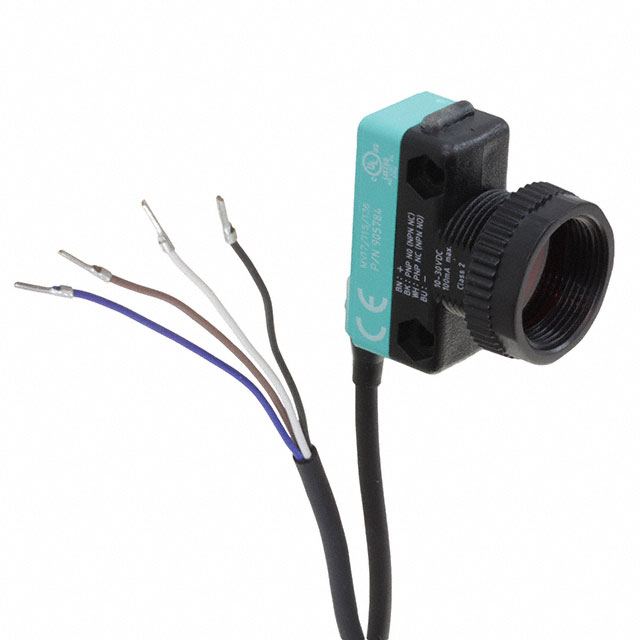

PHOTOELECTRIC SENSOR, ML17 SERIES, TRU-VUE, DIFFUSE, 450 MM, NPN / PNP, 10 VDC TO 30VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
ML17-8-450/115/136
ActivePEPPERL+FUCHS
PHOTOELECTRIC SENSOR, ML17 SERIES, TRU-VUE, DIFFUSE, 450 MM, NPN / PNP, 10 VDC TO 30VDC
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | ML17-8-450/115/136 |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Infrared (950nm) |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Output Configuration | Light-On/Dark-On |
| Response Time | 1 ms |
| Sensing Distance [Max] | 450 mm |
| Sensing Distance [Max] | 17.717 " |
| Sensing Distance [Min] | 0.394 " |
| Sensing Distance [Min] | 10 mm |
| Sensing Method | Diffuse |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ML17-8 Series
Diffuse Optical Sensor 0.394" ~ 17.717" (10mm ~ 450mm) Light-On/Dark-On
