M3234-000005-100PG

Active

TE Connectivity Measurement Specialties

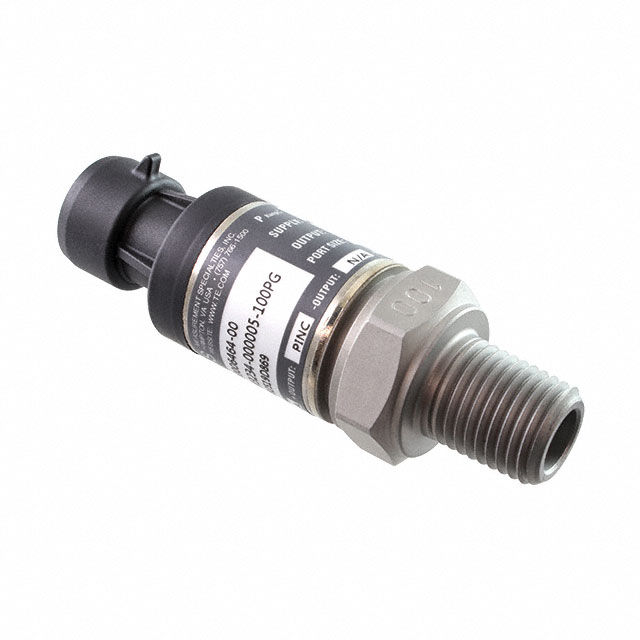

PRESSURE SENSOR 100PSI GAUGE

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

PRESSURE SENSOR 100PSI GAUGE

Technical Specifications

Parameters and characteristics for this part

Specification	M3234-000005-100PG

Accuracy	0.25 %
Applications	Industrial Automation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	200 PSI
Maximum Pressure [Max]	1378.95 kPa
Operating Pressure	689.48 kPa
Operating Pressure	100 PSI
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	Cylinder, Threaded
Port Size [custom]	NPT
Port Size [custom]	Male
Port Size [x]	0.25 "
Port Size [x]	6.35 mm
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Packard, 3 Pin
Voltage - Supply [Max]	5 V
Voltage - Supply [Min]	2.7 V

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Port Style	Applications	Features	Package / Case	Termination Style	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Output [Min]	Output [Max]	Operating Pressure	Operating Pressure	Pressure Type	Voltage - Supply [Max]	Voltage - Supply [Min]
TE Connectivity Measurement Specialties M3234-000005-100PG	200 PSI	1378.95 kPa	0.25 %	NPT	0.25 "	6.35 mm	Male	Threaded	Industrial Automation	Amplified Output Temperature Compensated	Cylinder Threaded	Packard 3 Pin	Analog Voltage	125 °C	-40 °C	0.5 V	4.5 V	689.48 kPa	100 PSI	Vented Gauge	5 V	2.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PRESSURE SENSOR 100PSI GAUGE
