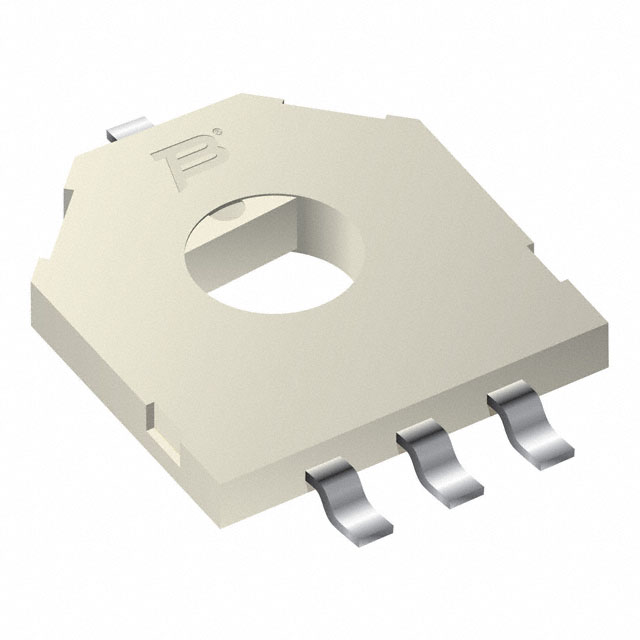

3382G-1-253G
ActiveBourns Inc.
SENSOR ROTARY 330DEG SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3382G-1-253G
ActiveBourns Inc.
SENSOR ROTARY 330DEG SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3382G-1-253G |
|---|---|
| Actuator Type | Hole for Shaft |
| For Measuring | Rotary Position |
| Linearity | 2 % |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Resistive |
| Output Signal | Clockwise Increase |
| Package / Case | 4-SMD, Gull Wing |
| Resistance | 25 kOhms |
| Resistance Tolerance | 30 % |
| Rotation Angle - Electrical, Mechanical [Max] | 330 ° |
| Rotation Angle - Electrical, Mechanical [Min] | 0 ° |
| Technology | Resistive |
| Termination Style | SMD (SMT) Tab |
3382G Series
| Part | For Measuring | Technology | Actuator Type | Output | Mounting Type | Termination Style | Package / Case | Rotation Angle - Electrical, Mechanical [Max] | Rotation Angle - Electrical, Mechanical [Min] | Output Signal | Operating Temperature [Min] | Operating Temperature [Max] | Linearity | Resistance | Resistance Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | Rotary Position | Resistive | Hole for Shaft | Resistive | Surface Mount | SMD (SMT) Tab | 4-SMD Gull Wing | 330 ° | 0 ° | Clockwise Increase | -40 °C | 120 °C | 2 % | 25 kOhms | 30 % |
Bourns Inc. | Rotary Position | Resistive | Hole for Shaft | Resistive | Surface Mount | SMD (SMT) Tab | 4-SMD Gull Wing | 330 ° | 0 ° | Clockwise Increase | -40 °C | 120 °C | 2 % | 100 kOhms | 30 % |
Bourns Inc. | Rotary Position | Resistive | Hole for Shaft | Resistive | Surface Mount | SMD (SMT) Tab | 4-SMD Gull Wing | 330 ° | 0 ° | Clockwise Increase | -40 °C | 120 °C | 2 % | 10000 Ohms | 30 % |
Bourns Inc. | Rotary Position | Resistive | Hole for Shaft | Resistive | Surface Mount | SMD (SMT) Tab | 4-SMD Gull Wing | 330 ° | 0 ° | Clockwise Increase | -40 °C | 120 °C | 2 % | 5 kOhms | 30 % |
Bourns Inc. | Rotary Position | Resistive | Hole for Shaft | Resistive | Surface Mount | SMD (SMT) Tab | 4-SMD Gull Wing | 330 ° | 0 ° | Clockwise Increase | -40 °C | 120 °C | 2 % | 50 kOhms | 30 % |
Bourns Inc. | Rotary Position | Resistive | Hole for Shaft | Resistive | Surface Mount | SMD (SMT) Tab | 4-SMD Gull Wing | 330 ° | 0 ° | Clockwise Increase | -40 °C | 120 °C | 2 % | 100 kOhms | 30 % |
Bourns Inc. | Rotary Position | Resistive | Hole for Shaft | Resistive | Surface Mount | SMD (SMT) Tab | 4-SMD Gull Wing | 330 ° | 0 ° | Clockwise Increase | -40 °C | 120 °C | 2 % | 10000 Ohms | 30 % |
Bourns Inc. | Rotary Position | Resistive | Hole for Shaft | Resistive | Surface Mount | SMD (SMT) Tab | 4-SMD Gull Wing | 330 ° | 0 ° | Clockwise Increase | -40 °C | 120 °C | 2 % | 25 kOhms | 30 % |
Bourns Inc. | Rotary Position | Resistive | Hole for Shaft | Resistive | Surface Mount | SMD (SMT) Tab | 4-SMD Gull Wing | 330 ° | 0 ° | Clockwise Increase | -40 °C | 120 °C | 2 % | 2.5 kOhms | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 1.11 | |
Description
General part information
3382G Series
Resistive Sensor Rotary Position Hole for Shaft SMD (SMT) Tab
