325-021-540-109

Active

EDAC Inc.

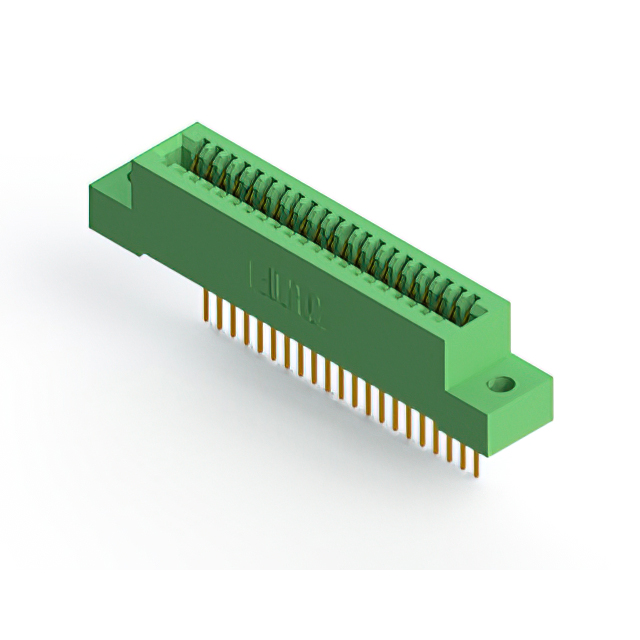

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 21 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

325-021-540-109

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 21 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-021-540-109

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	0.16 in
Flange Feature [diameter]	4.06 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	21
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

325-021 Series

Part	Card Type	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Card Thickness	Card Thickness	Number of Positions	Pitch [x]	Pitch [x]	Gender	Number of Rows	Contact Material	Termination Rows	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish	Contact Type	Read Out	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Color
EDAC Inc. 325-021-540-109	Non Specified - Single Edge	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	21	2.54 mm	0.1 in	Female	1	Copper Alloy	1	Wire Wrap	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm	Gold	Cantilever	Single	Through Hole	125 °C	-65 ░C	Green
EDAC Inc. 325-021-540-108	Non Specified - Single Edge	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	21	2.54 mm	0.1 in	Female	1	Copper Alloy	1	Wire Wrap		4-40 Flush Mount Threaded Insert Top Opening		Gold	Cantilever	Single	Through Hole	125 °C	-65 ░C	Green
EDAC Inc. 325-021-520-108	Non Specified - Single Edge	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	21	2.54 mm	0.1 in	Female	1	Copper Alloy	1	Solder		4-40 Flush Mount Threaded Insert Top Opening		Gold	Cantilever	Single	Through Hole	125 °C	-65 ░C	Green
EDAC Inc. 325-021-520-101	Non Specified - Single Edge	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	21	2.54 mm	0.1 in	Female	1	Copper Alloy	1	Solder				Gold	Cantilever	Single	Through Hole	125 °C	-65 ░C	Green
EDAC Inc. 325-021-540-107	Non Specified - Single Edge	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	21	2.54 mm	0.1 in	Female	1	Copper Alloy	1	Wire Wrap		Flush Mount M3 Threaded Insert Top Opening		Gold	Cantilever	Single	Through Hole	125 °C	-65 ░C	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 11.11
Newark	Each	1	$ 13.09
		100	$ 9.44
		250	$ 7.42
		500	$ 6.29
		1000	$ 4.70

Description

General part information

325-021 Series

21 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
