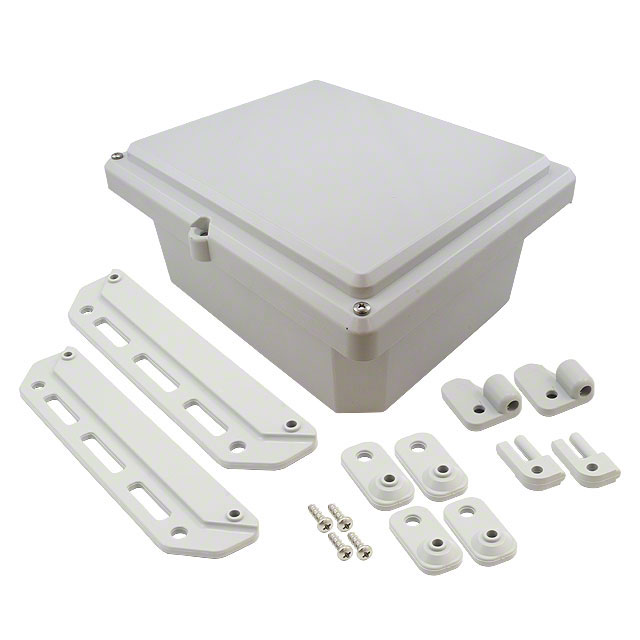

I342HSGG

Active

Serpac

BOX PLASTIC GRY 11.75"L X 9.98"W

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC GRY 11.75"L X 9.98"W

Technical Specifications

Parameters and characteristics for this part

Specification	I342HSGG

Area (L x W) [custom]	117 in²
Area (L x W) [custom]	755 cm²
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Features	Watertight, Mounting Flange, PCB Supports
Height [z]	138.68 mm
Height [z]	5.46 in
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	11.75 in
Size / Dimension [x]	298.45 mm
Size / Dimension [y]	9.98 in
Size / Dimension [y]	253.49 mm

Part	Ratings	Material Flammability Rating	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Design	Features	Color	Area (L x W) [custom]	Area (L x W) [custom]	Container Type	Height [z]	Height [z]
Serpac I342HSGG	IP67 NEMA 4	UL94 V-0	Plastic Polycarbonate	9.98 in	11.75 in	253.49 mm	298.45 mm	Hinged Door Lid	Mounting Flange PCB Supports Watertight	Gray	117 in²	755 cm²	Box	138.68 mm	5.46 in
Serpac I342HS,TCBC	IP67 NEMA 4	UL94 V-0	Plastic Polycarbonate	9.98 in	11.75 in	253.49 mm	298.45 mm	Hinged Door Lid	Mounting Flange PCB Supports Watertight	Clear	117 in²	755 cm²	Box	138.68 mm	5.46 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Gray Hinged Door, Lid 11.750" L x 9.980" W (298.45mm x 253.49mm) X 5.460" (138.68mm)

Technical documentation and resources

No documents available
