772-E25-113R011

Active

MH Connectors

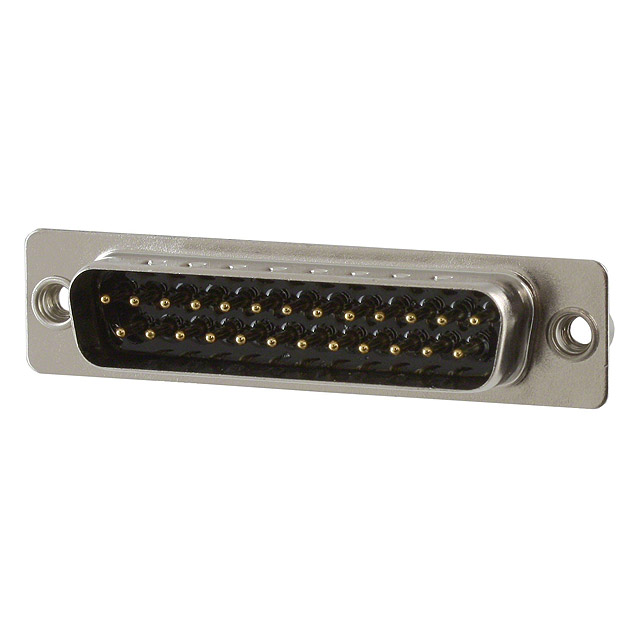

CONN D-SUB PLG 25POS PNL MT SLDR

Search across all available documentation for this part.

Active

MH Connectors

CONN D-SUB PLG 25POS PNL MT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	772-E25-113R011

Color	White
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents
Flange Feature	Board Side, 4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Rows	2
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

Part	Contact Type	Connector Style	Connector Type	Number of Rows	Ingress Protection	Material Flammability Rating	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Shell Material, Finish	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Features	Color	Flange Feature	Current Rating (Amps)	Mounting Type	Termination
MH Connectors 772-E25-103R001	Signal	D-Sub	Male Pins Plug	2	IP67 - Dust Tight Waterproof	UL94 V-0	Polybutylene Terephthalate (PBT)	B DB	3	Gold	Nickel Plated Steel	Flash	20 AWG	26 AWG	Brass	Grounding Indents	White	Housing/Shell (Unthreaded)	5 A
MH Connectors 772-E25-213R001	Signal	D-Sub	Receptacle Female Sockets	2	IP67 - Dust Tight Waterproof	UL94 V-0	Polyamide (PA6T) Nylon 6T	B DB	3	Gold	Nickel Plated Steel	Flash			Brass		White	Housing/Shell (Unthreaded)	5 A	Panel Mount Through Hole	Solder
MH Connectors 772-E25-113R011	Signal	D-Sub	Male Pins Plug	2	IP67 - Dust Tight Waterproof	UL94 V-0	Polyamide (PA6T) Nylon 6T	B DB	3	Gold	Nickel Plated Steel	Flash			Brass	Grounding Indents	White	4-40 Board Side	5 A	Panel Mount Through Hole	Solder
MH Connectors 772-E25-113R051	Signal	D-Sub	Male Pins Plug	2	IP67 - Dust Tight Waterproof	UL94 V-0	Polyamide (PA6T) Nylon 6T	B DB	3	Gold	Nickel Plated Steel	Flash			Brass	Board Lock Grounding Indents	White	4-40 Board Side	5 A	Panel Mount Through Hole	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
