SIT3342AIA2C9-30EB34.000000

Active

SiTime

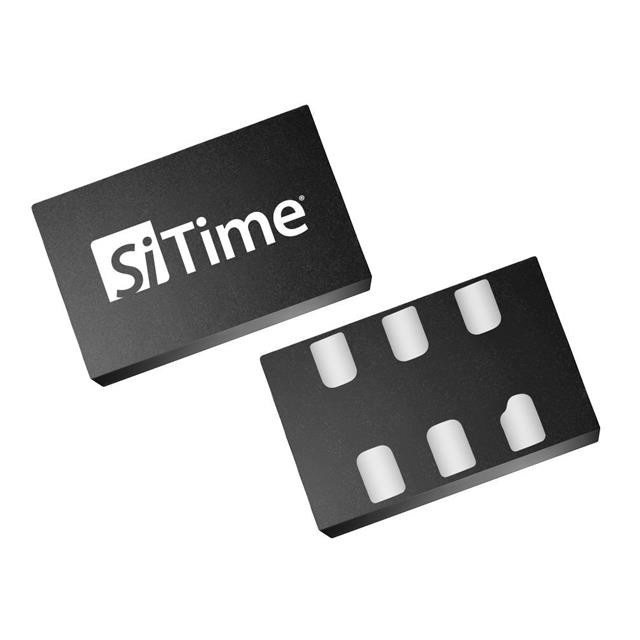

MEMS OSC VCXO 34.000000 MHZ LVDS

Search across all available documentation for this part.

Active

SiTime

MEMS OSC VCXO 34.000000 MHZ LVDS

Technical Specifications

Parameters and characteristics for this part

Specification	SIT3342AIA2C9-30EB34.000000

Absolute Pull Range (APR)	10 ppm
Base Resonator	MEMS
Current - Supply (Disable) (Max) [Max]	62 mA
Current - Supply (Max) [Max]	84 mA
Frequency	34 MHz
Frequency Stability	35 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVDS
Package / Case	6-SMD, No Lead Exposed Pad
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Type	VCXO
Voltage - Supply	3 V

Part	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Supply (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Stability	Absolute Pull Range (APR)	Current - Supply (Disable) (Max) [Max]	Function	Frequency	Voltage - Supply	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Output	Base Resonator	Package / Case	Supplier Device Package
SiTime SIT3342AIA2C9-30EB34.000000	Surface Mount	0.035 "	0.9 mm	84 mA	VCXO	85 °C	-40 °C	35 ppm	10 ppm	62 mA	Enable/Disable	34 MHz	3 V	0.197 in	0.126 "	3.2 mm	5 mm	LVDS	MEMS	6-SMD No Lead Exposed Pad
SiTime SIT3342AIA1BH-33NM156.250000	Surface Mount	0.035 "	0.9 mm	92 mA	VCXO	85 °C	-40 °C	15 ppm	5 ppm			156.25 MHz	3.3 V	0.126 in	0.098 in	2.5 mm	3.2 mm	LVPECL	MEMS	6-SMD No Lead	6-PQFD (3.2x2.5)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10	$ 15.82

General part information

34 MHz VCXO LVDS Oscillator 3V Enable/Disable 6-SMD, No Lead Exposed Pad
