ER1004F_T0_00001

Active

Panjit International Inc.

ITO-220AC, SUPER

Search across all available documentation for this part.

Active

Panjit International Inc.

ITO-220AC, SUPER

Technical Specifications

Parameters and characteristics for this part

Specification	ER1004F_T0_00001

Capacitance @ Vr, F	62 pF
Current - Average Rectified (Io)	10 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

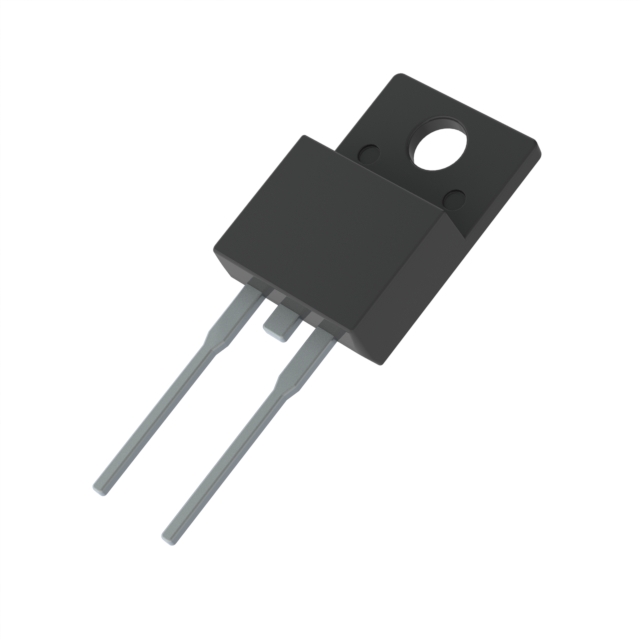

Package / Case	TO-220-2 Full Pack, Isolated Tab
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	ITO-220AC
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

Part	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Mounting Type	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Technology	Package / Case	Diode Configuration	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)
Panjit International Inc. ER1004FCT_T0_00001	ITO-220AB	10 A	400 V	1.3 V	Through Hole	35 ns	1 µA	150 °C	-55 °C	200 mA 500 ns	Standard	TO-220-3 Full Pack	1 Pair Common Cathode
Panjit International Inc. ER1004F_T0_00001	ITO-220AC		400 V		Through Hole	50 ns	1 µA	150 °C	-55 °C	200 mA 500 ns	Standard	TO-220-2 Full Pack Isolated Tab		62 pF	1.3 V	10 A
Panjit International Inc. ER1004CT_T0_00001	TO-220AB	10 A	400 V	1.3 V	Through Hole	35 ns	1 µA	150 °C	-55 °C	200 mA 500 ns	Standard	TO-220-3	1 Pair Common Cathode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 0.50

General part information

Diode 400 V 10A Through Hole ITO-220AC
