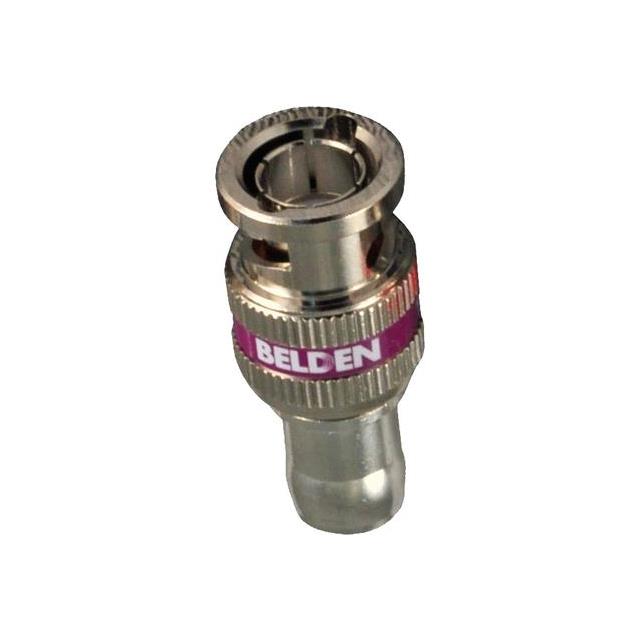

179DTBHDL

Obsolete

Belden Inc.

CONN, LCK, 179 DIGI-/50PK

Search across all available documentation for this part.

Obsolete

Belden Inc.

CONN, LCK, 179 DIGI-/50PK

Technical Specifications

Parameters and characteristics for this part

Specification	179DTBHDL

null

Part	Impedance	Shield Material	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Dielectric Material	Length	Length	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Shield Coverage	Cable Group	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Material	Cable Type	Conductor Strand	Conductor Material
Belden Inc. 179DT 0061000	75 Ohms	Aluminum Copper Tinned	Datacom Network	0.1 in	2.54 mm	Blue	Foam Polyethylene (FPE)	304.8 m	1000 ft	Braid Foil	-30 ░C	75 ░C	28 AWG	95 % 100 %	RG-179	79	1.42 mm	0.056 "	Poly-Vinyl Chloride (PVC) Riser	Coaxial	Solid	Copper Bare
Belden Inc. 179DT 0081000	75 Ohms	Aluminum Copper Tinned	Datacom Network	0.1 in	2.54 mm	Gray	Foam Polyethylene (FPE)	304.8 m	1000 ft	Braid Foil	-30 ░C	75 ░C	28 AWG	95 % 100 %	RG-179	79	1.42 mm	0.056 "	Poly-Vinyl Chloride (PVC) Riser	Coaxial	Solid	Copper Bare
Belden Inc. 179DTBHDL
Belden Inc. 179DTBHD1
Belden Inc. 179DT N3U1000	75 Ohms	Aluminum Copper Tinned	Datacom Network	0.1 in	2.54 mm	Green	Foam Polyethylene (FPE)	304.8 m	1000 ft	Braid Foil	-30 ░C	75 ░C	28 AWG	95 % 100 %	RG-179	79	1.42 mm	0.056 "	Poly-Vinyl Chloride (PVC) Riser	Coaxial	Solid	Copper Bare
Belden Inc. 179DT 0041000	75 Ohms	Aluminum Copper Tinned	Datacom Network	0.1 in	2.54 mm	Yellow	Foam Polyethylene (FPE)	304.8 m	1000 ft	Braid Foil	-30 ░C	75 ░C	28 AWG	95 % 100 %	RG-179	79	1.42 mm	0.056 "	Poly-Vinyl Chloride (PVC) Riser	Coaxial	Solid	Copper Bare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector
