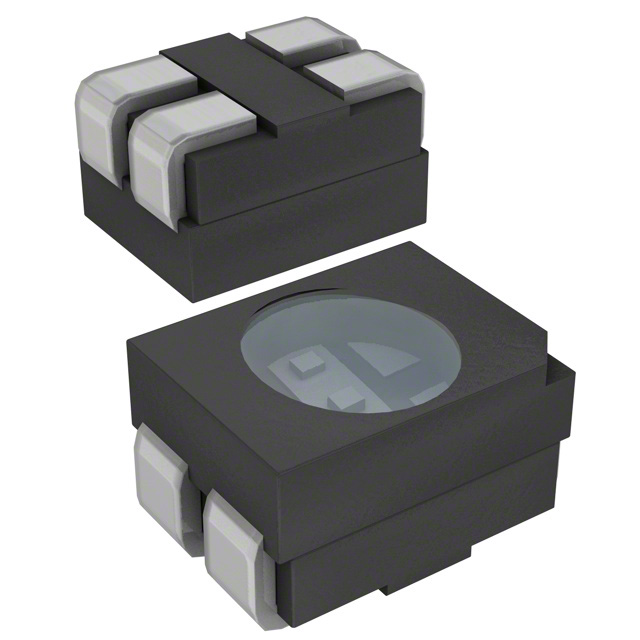

CLVBA-FKA-CA1D181BB7D3D3
ActiveCree LED
LED RGB 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
CLVBA-FKA-CA1D181BB7D3D3
ActiveCree LED
LED RGB 4PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CLVBA-FKA-CA1D181BB7D3D3 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 8 mA |
| Current - Test [custom] | 8 mA |
| Current - Test [custom] | 8 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Millicandela Rating [custom] | 74 mcd |
| Millicandela Rating [custom] | 148 mcd |
| Millicandela Rating [custom] | 295 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-LCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Voltage - Forward (Vf) (Typ) [custom] | 1.9 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3 V |
| Wavelength - Dominant | 622 nm, 530 nm, 470 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.55 | |
| 10 | $ 0.51 | |||
| 100 | $ 0.47 | |||
| 1000 | $ 0.42 | |||
| Digi-Reel® | 1 | $ 0.55 | ||
| 10 | $ 0.51 | |||
| 100 | $ 0.47 | |||
| 1000 | $ 0.42 | |||
| Tape & Reel (TR) | 2000 | $ 0.42 | ||
Description
General part information
CLVBA Series
Red, Green, Blue (RGB) 622nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3V Green, 3V Blue 4-LCC (J-Lead)
